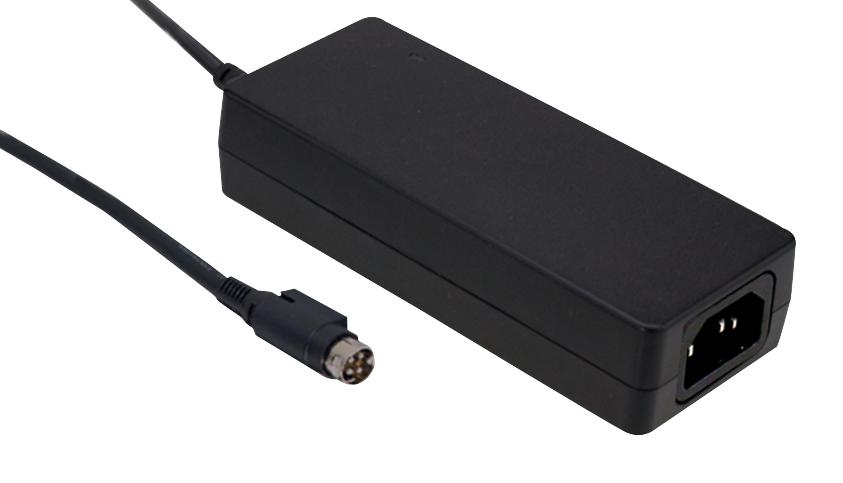

MEAN WELL GSM120B48R7B Medical Power Adapter
GSM120B series is a highly reliable 120W medical power adapter designed for various medical devices such as portable hemodialysis machines, medical monitors, and other equipment requiring stable, efficient power. This adapter features universal input from 80VAC to 264VAC, low leakage current (<100μA), high efficiency up to 91.5%, and full compliance with international safety standards like 2*MOPP. Its fanless, compact design ensures quiet operation within a working temperature of -30°C to +60°C, making it ideal for medical environments that demand durability, safety, and energy efficiency.
MEAN WELL GSM120B48R7B Medical Power Adapter Specifications:
- Input Voltage: 80VAC to 264VAC
- Output Voltages: 12V, 18V, 20V, 24V, 48V
- Rated Power: 102W to 120W depending on model
- Efficiency: up to 91.5%
- Leakage Current: <100μA
- Protection: Short circuit / Overload / Over voltage / Over temperature
- Working Temperature: -30°C to +60°C
- Dimensions: 167mm x 67mm x 35mm
- Working Humidity: 20% to 90% RH non-condensing
- Certifications: UL, TUV EN60601-1, ANSI/AAMI ES60601-1
- Case: Fully enclosed flame-retardant plastic
- Input Type: IEC320-C8, 2-pole AC inlet
- Built-in Active Power Factor Correction (PFC)
- Power Factor: >0.93 at 230VAC, >0.97 at 115VAC
- Features: Low no-load power consumption, LED indicator for power status, fanless design
Buy the Buy Medical Power Supply GSM120B Series Part Number GSM120B48R7B Online
Purchase the GSM120B series medical power adapter online today for safe, efficient, and reliable power supply to your healthcare devices. With universal input from 80VAC to 264VAC, low leakage current, and high efficiency up to 91.5%, this adapter ensures optimal performance even in demanding medical environments. Its compact, fanless design allows for quiet operation within a wide temperature range of -30°C to +60°C. Certified for medical safety standards such as UL, TUV EN60601-1, and IEC, this power supply guarantees safety, durability, and energy savings, making it an ideal choice for healthcare facilities needing dependable power solutions.
Order your GSM120B48R7B medical series power adapter today and ensure reliable, efficient power for your critical healthcare devices.
Frequently Asked Questions
Where can I buy MEAN WELL GSM120B48R7B?
You can click on the BUY or RFQ button to purchase GSM120B48R7B from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part GSM120B48R7B?
You can download the GSM120B48R7B datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of GSM120B48R7B?
MEAN WELL
