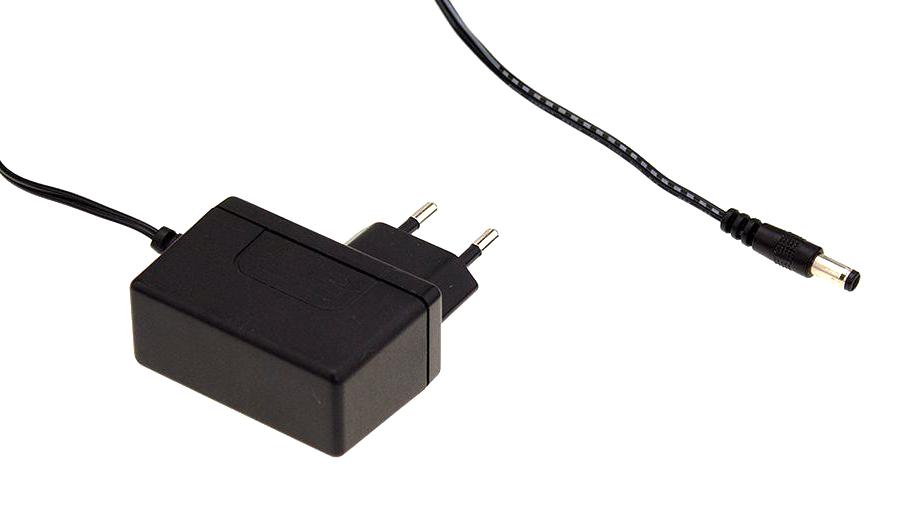

MEAN WELL GSM12E24P1J medical power adapter
GSM12E24P1J is a highly reliable, 12W wall-mounted medical power adapter designed for portable and bedside devices. It features universal AC input (80VAC-264VAC), full compliance with international safety standards (EN60601-1/EN60601-1-11), and ultra-low leakage current (<100μA). The compact, fully enclosed plastic case ensures durability and safety, with protections against short circuit, overload, and overvoltage. The power supply offers high efficiency up to 87%, low no-load power consumption below 0.075W, and is suitable for medical devices such as blood glucose meters and nebulizers, suitable for medical environments.
MEAN WELL GSM12E24P1J medical power adapter Specifications:
- Input Voltage: 80VAC to 264VAC, 47~63Hz
- Output Voltage: 24V
- Rated Power: 120W
- Ripple & Noise: 80mVp-p max
- Voltage Tolerance: ±3%
- Line Regulation: ±1%
- Load Regulation: ±3%
- Efficiency: up to 87%
- No-load Power Consumption: below 0.075W
- Protection: Short circuit, Overload (110-200%), Over voltage (110-140%), Auto-recovery
- Temperature Range: -20°C to +70°C
- Humidiy: 20% to 90% RH non-condensing
- Dimensions: 62.2mm x 39.7mm x 27.4mm
- Connector: P1J standard plug, optional variants available
Buy the Reliable Power Supply for Medical Devices
Purchase the GSM12E24P1J medical power adapter online now to ensure your medical devices operate safely and efficiently. This compact, reliable power supply complies with international safety standards, providing stable 24V output with high efficiency and ultra-low leakage current. Its protections against short circuit, overload, and overvoltage make it suitable for sensitive medical applications such as blood glucose meters, nebulizers, and infusion pumps. With a 3-year warranty and low no-load power consumption, this power supply guarantees dependable performance for medical environments.
Order your Trusted GSM12E24P1J medical power adapter today and enhance your portable medical devices with reliable, efficient power solutions.
Frequently Asked Questions
Where can I buy MEAN WELL GSM12E24P1J?
You can click on the BUY or RFQ button to purchase GSM12E24P1J from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part GSM12E24P1J?
You can download the GSM12E24P1J datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of GSM12E24P1J?
MEAN WELL
