MEAN WELL GSM160B20R7B Medical Power Adapter
GSM160B is a highly reliable 160W medical power adapter series designed for medical devices requiring safe, efficient, and low leakage power supply. It features universal input from 80VAC to 264VAC, with output voltages between 12V and 48V, and is equipped with a 2-pin IEC320-C8 inlet. Certified for medical safety with 2*MOPP and meeting international standards, it offers up to 94% efficiency, low no-load power consumption below 0.15W, and a flame-retardant plastic case. Suitable for various medical applications including exam systems, portable hemodialysis, breath machines, and medical monitors, it guarantees stability, safety, and energy savings.
MEAN WELL GSM160B20R7B Medical Power Adapter Specifications:
- Input Voltage: 80VAC to 264VAC
- Output Power: 160W
- Output Voltages: 12V, 15V, 20V, 24V, 48V
- Rated Currents: 11.54A at 12V, 9.6A at 15V, 8A at 20V, 6.67A at 24V, 3.34A at 48V
- Ripple & Noise: 80-240mVp-p depending on output model
- Voltage Tolerance: +3% to +5%
- Line & Load Regulation: ±1% to ±5%
- Efficiency: up to 94%
- No-Load Power Consumption: <0.15W
- Working Temperature: -30°C to +70°C
- Protections: Short circuit, Overload, Over voltage, Over temperature
- Certification: IEC60601-1, EN60601-1-11, UL, TUV
- Dimensions: 175 x 72 x 35 mm
- Insulation Level: 2xMOPP for patient safety
- Operating Humidity: 20-90% RH non-condensing
- MTBF: 239,100 hours

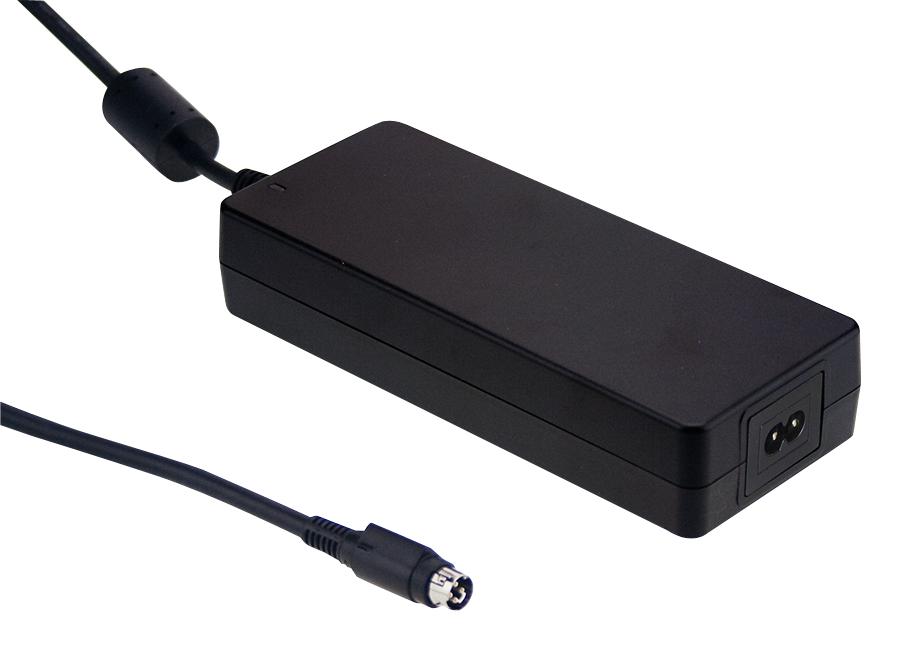

Buy the Buy MW 160W Medical Power Supply Part Number GSM160B20R7B Online
Experience superior safety and energy efficiency with this 160W medical power adapter. Certified to international medical standards, it features low leakage current below 0.15W, up to 94% efficiency, and a flame-retardant case. Compatible with various medical devices such as monitors, portable hemodialysis, and breath machines, it offers reliable power with protections against overload, overvoltage, and temperature fluctuations. Easy to install, this adapter ensures safety, stability, and energy savings, making it essential for medical professionals and equipment manufacturers seeking a trusted power solution.
Buy MW 160W medical power adapter now and experience unmatched safety, efficiency, and reliability for vital medical equipment and devices.
Frequently Asked Questions
Where can I buy MEAN WELL GSM160B20R7B?
You can click on the BUY or RFQ button to purchase GSM160B20R7B from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part GSM160B20R7B?
You can download the GSM160B20R7B datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of GSM160B20R7B?
MEAN WELL
