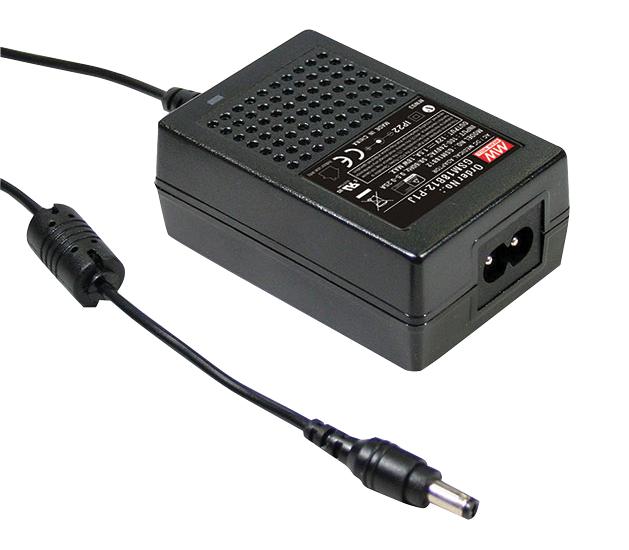

MEAN WELL GSM18B05P1J Medical Power Adapter
GSM18B series is a reliable, medical-grade 18W power adapter compatible with various portable and bedside medical devices. It features universal AC input (80VAC-264VAC), high efficiency up to 88%, and ultra-low leakage current <50uA, ensuring safety for direct patient contact. The fully enclosed plastic case provides double insulation and compliance with international medical standards (2 x MOPP). It supports multiple output voltages from 5VDC to 48VDC, with protections for short circuit, overload, and overvoltage. Certified for medical safety, it includes LED power indicator and optional lockable DC plug, backed by a 3-year warranty.
MEAN WELL GSM18B05P1J Medical Power Adapter Specifications:
- Input Voltage: 80VAC-264VAC
- Output Power: Up to 18W
- Efficiency: Up to 88%
- Leakage Current: <50uA
- Output Voltages: 5V, 7.5V, 12V, 15V, 18V, 24V, 48V
- Rated Current: 3A (5V), 2A (7.5V, 12V), 1A (15V), 0.75A (18V), 0.375A (24V), 0.2A (48V)
- Dimensions: 79mm x 54mm x 33mm
- Temperature Range: -25°C to +60°C
- Protection: Short circuit, Overload, Overvoltage
- Safety Certifications: UL60601-1, TUV, EN60601-1
- Construction: Fully enclosed plastic case with double insulation
- Efficiency: Up to 88%, with high digital circuitry design
- Power Factor Correction: Not specified fully but compliant with international standards
- Operation: Class II power supply, no earth pin
- Features: LED power indicator, optional lockable DC connector
Buy the Mean Well Series GSM18B Medical Adapter: GSM18B05P1J
Order the Mean Well GSM18B series medical power adapter online today and ensure reliable operation for your medical devices. With high efficiency up to 88%, ultra-low leakage current, and certified safety standards, this adapter provides safe, efficient power supply solutions for portable and bedside medical equipment. Its compact design, multiple output voltages, and protections for short circuit, overload, and overvoltage make it ideal for various medical applications. Enjoy fast shipping and a 3-year warranty by purchasing online today.
Get Mean Well GSM18B series medical power adapter today—built for precision and long-lasting durability in critical healthcare applications.
Frequently Asked Questions
Where can I buy MEAN WELL GSM18B05P1J?
You can click on the BUY or RFQ button to purchase GSM18B05P1J from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part GSM18B05P1J?
You can download the GSM18B05P1J datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of GSM18B05P1J?
MEAN WELL
