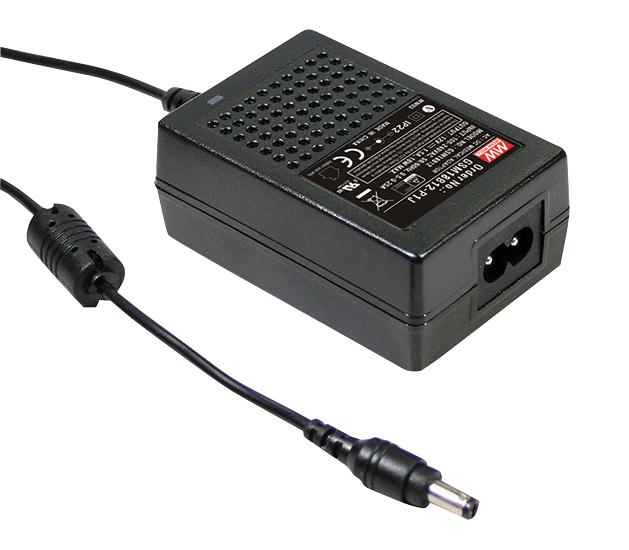

MEAN WELL GSM18B12P1J Medical Power Adapter
GSM18B is a high-reliability, medical-grade 18W power adapter suitable for portable and bedside medical devices. It features universal input from 80VAC to 264VAC, an efficiency of up to 88%, and ultra-low leakage current below 50uA, meeting international safety standards with 2 x MOPP isolation. The enclosure is made of flame-retardant plastic, ensuring safety and durability. It supports multiple output voltages between 5VDC and 48VDC, with protections against short circuits, overload, and overvoltage. Its design complies with global energy efficiency and medical safety requirements, making it ideal for bedside monitors, blood glucose meters, and nebulizers.
MEAN WELL GSM18B12P1J Medical Power Adapter Specifications:
- Input Voltage: 80VAC to 264VAC
- Output Power: 18W
- Output Voltage: 5V, 7.5V, 12V, 15V, 18V, 24V, 48V
- Rated Current: 3A (5V), 2A (7.5V, 12V), 1A (15V), 0.75A (18V), 0.375A (24V), 0.2A (48V)
- Ripple & Noise: Up to 240mVp-p depending on output voltage
- Voltage Tolerance: ±5% (varies with model)
- Efficiency: Up to 88%
- Leakage Current: <50uA
- Protections: Short circuit, Overload, Overvoltage
- Isolation: 2 x MOPP compliant (medical safety standard)
- Case Material: Flame-retardant plastic (94V-0)
- Operating Temperature: -25°C to +60°C, derating applies
- Dimensions: 79 x 54 x 33mm
- MTBF: 796,700 hours minimum
- Certifications: UL60601-1, EN60601-1, FCC Part 15, EN55011
Buy the Buy Mean Well 18WAC-DC Medical Power Adapter Part Number GSM18B12P1J Online
Purchase the Mean Well GSM18B12P1J medical power adapter online today and ensure your medical devices operate reliably and efficiently. This 18W adapter features universal input from 80VAC to 264VAC, high efficiency up to 88%, and ultra-low leakage current below 50uA, meeting international safety and energy standards. Its compact design, multiple output voltages, and robust protections make it ideal for bedside monitors, blood glucose meters, nebulizers, and portable medical equipment. Enjoy fast delivery and excellent customer support when you order online today.
Buy Mean Well GSM18B12P1J now and experience unmatched reliability and performance for your medical devices with this high-efficiency power supply.
Frequently Asked Questions
Where can I buy MEAN WELL GSM18B12P1J?
You can click on the BUY or RFQ button to purchase GSM18B12P1J from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part GSM18B12P1J?
You can download the GSM18B12P1J datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of GSM18B12P1J?
MEAN WELL
