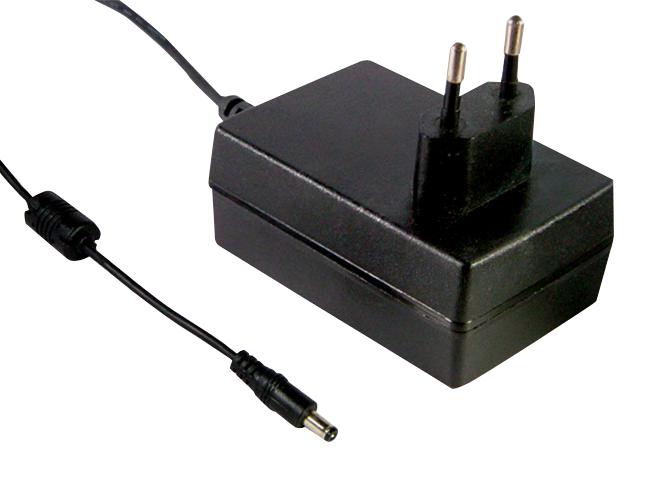

MEAN WELL GSM18E05P1J Medical Power Adapter
GSM18E series is a high-reliability, 18W wall-mounted medical adaptor with European two-pin input, delivering output voltages from 5V to 48V. Crafted with a fully enclosed flame retardant plastic case, it ensures safety with double insulation (2 x MOPP), making it suitable for direct patient contact medical devices like blood glucose and blood pressure meters, nebulizers, and inhalers. Featuring up to 88% efficiency, low no-load power consumption under 0.1W, and medical safety approvals, it meets international standards, operating safely at temperatures up to +60°C. Its protections include short circuit, overload, and overvoltage, plus optional lockable DC plugs, making it a versatile, energy-efficient power solution for medical electronics.
MEAN WELL GSM18E05P1J Medical Power Adapter Specifications:
- Output Voltages: 5V, 7.5V, 18V, 24V, 48V
- Rated Power: 15W to 18W depending on model
- Input Voltage Range: 80VAC to 264VAC, 113VDC to 370VDC
- Efficiency: Up to 88%
- Leakage Current: Below 50A at 264VAC
- Operating Temperature: -25°C to +60°C (derating applies)
- Dimensions: 79 x 54 x 33 mm (L x W x H)
- Safety Certifications: IEC60601-1, EN60601-1, EN60601-4
- Features: Fully enclosed plastic case, LED power indicator, optional lock plug, full load burn-in tested
- Protections: Short circuit, overload, overvoltage, automatic recovery
- Input Plug: 2-pin European with optional lock type
- Protection Class: Class II without earth pin
- Temperature Range: Storage -40°C to +85°C, operating -25°C to +60°C
- Vibration Resistance: 10Hz to 500Hz, 2G for 60 minutes each axis
Buy the Mean Well GSM18E – Reliable Medical Power Adapter for Industrial Applications
Purchase the reliable Mean Well GSM18E medical power adapter online today to ensure your portable medical devices operate safely, efficiently, and reliably. Designed with advanced safety features, ultra-low leakage current, and high efficiency, it is perfect for direct patient contact devices such as blood glucose meters, blood pressure monitors, nebulizers, and inhalers. With full load burn-in testing, a fully enclosed flame-retardant case, and optional locking connectors, this adapter guarantees long-lasting performance and compliance with global safety standards. Order now to enhance your medical equipment with quality power solutions that meet demanding healthcare requirements.
Get Mean Well GSM18E today—built for medical device safety, high efficiency, and durable reliability in medical and portable applications.
Frequently Asked Questions
Where can I buy MEAN WELL GSM18E05P1J?
You can click on the BUY or RFQ button to purchase GSM18E05P1J from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part GSM18E05P1J?
You can download the GSM18E05P1J datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of GSM18E05P1J?
MEAN WELL
