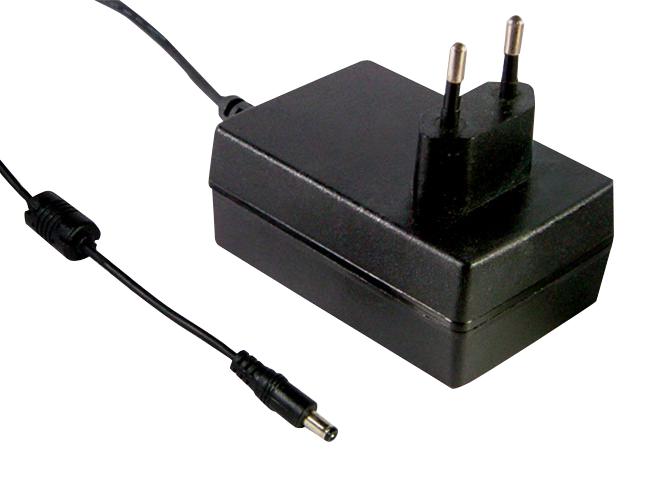

MEAN WELL GSM18E24P1J Medical Power Adapter
GSM18E series is a high-reliability, medical-grade 18W adapter designed for portable and compact medical devices. It features universal AC input from 80VAC to 264VAC, with multiple output voltages ranging from 5V to 48V to accommodate various applications such as blood glucose meters, blood pressure monitors, nebulizers, and inhalers. The device meets international medical safety standards (2 x MOPP), ensuring ultra-low leakage current under 50A, and compliance with EU ErP, CoC V5. It offers high efficiency up to 88%, low no-load power consumption below 0.1W, and is housed in a fully enclosed flame-retardant plastic case, providing double insulation and safe use in direct patient contact scenarios.
MEAN WELL GSM18E24P1J Medical Power Adapter Specifications:
- Input Voltage: 80VAC to 264VAC, 47-63Hz
- Output Voltages: 5V, 7.5V, 12V, 15V, 18V, 24V, 48V
- Rated Power: 15W to 18W depending on model
- Rated Current: 3A, 2A, 2A, 1A, 0.75A, 0.375A, 0.375A, 0.75A
- Ripple & Noise: 60mVp-p to 240mVp-p depending on model
- Voltage Tolerance: ±3% to ±5%
- Efficiency: Up to 88%
- No Load Power Consumption: <0.1W
- Protection Features: Short circuit, Overload, Overvoltage
- Temperature Range: -25°C to +60°C operating
- Safety: Medical safety approved (2 x MOPP), UL 60601-1, EN60601-1 compliant
- Housing Material: Flame-retardant plastic (94V-0)
- Dimensions: Approx. 79mm x 54mm x 33mm
- Weight: 200g approx.
- Certifications: TUV, UL, EN60601-1, CE, IEC60601
Buy the ICBCe GSM18E – Reliable Medical Power Adapter for Portable Devices
Purchase the ICBCe GSM18E medical power adapter online today to ensure your portable medical devices operate reliably and safely. This certified 18W adapter features universal input, multiple voltage options, high efficiency up to 88%, and ultra-low no-load power consumption below 0.1W. Its fully enclosed flame-retardant case provides double insulation, ideal for direct patient contact, with protections against short circuit, overload, and overvoltage. Enjoy fast delivery, warranty support, and peace of mind with this medical-standard certified power solution designed for demanding healthcare applications.
Buy ICBCe GSM18E 24V medical power adapter now and experience unmatched reliability, efficiency, and safety for your portable medical equipment.
Frequently Asked Questions
Where can I buy MEAN WELL GSM18E24P1J?
You can click on the BUY or RFQ button to purchase GSM18E24P1J from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part GSM18E24P1J?
You can download the GSM18E24P1J datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of GSM18E24P1J?
MEAN WELL
