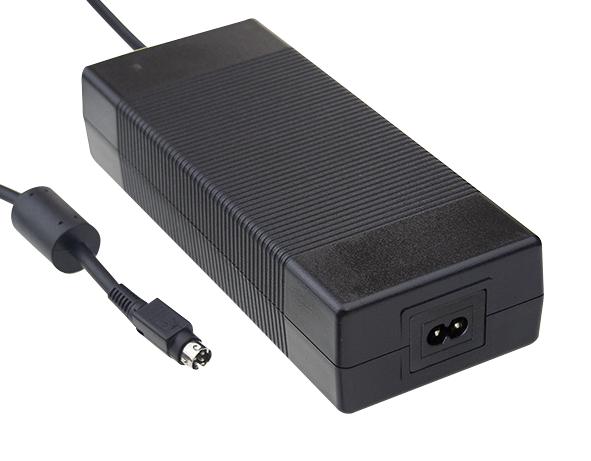

MEAN WELL GSM220B12R7B Medical Power Adapter
GSM220B is a highly reliable, 220W medical power adaptor series designed for various medical devices with high efficiency and safety. Equipped with a 2-pin IEC320-C8 inlet, it supports input voltages from 80VAC to 264VAC and outputs between 12VDC and 48VDC. It features ultra-low leakage current (<100μA), high efficiency up to 94.5%, and compliance with international safety standards including 2*MOPP. The fanless, compact plastic case ensures durability and safety for medical applications, including portable dialysis and clinical monitors. Its protections include overload, overvoltage, overtemperature, and short circuit, making it suitable for direct patient contact devices.
MEAN WELL GSM220B12R7B Medical Power Adapter Specifications:
- Input Voltage: 80VAC to 264VAC
- Output Voltage: 12V, 18V, 20V, 48V (depending on model)
- Rated Power: 180W to 220W
- Efficiency: Up to 94.5%
- Leakage Current: <100μA
- Protection: Overload, Overvoltage, Overtemperature, Short Circuit
- Operating Temperature: -30°C to +70°C (derating included)
- Dimensions: 85 x 46 x (unspecified height) mm
- Standards: IEC 60601-1, UL, CE, FCC, EN55011
- Safety: 2*MOPP for patient safety, double insulation
Buy the Energy Efficient Medical Power Supply GSM220B – Reliable Medical Adaptor for Medical Devices
Purchase the GSM220B medical power adaptor online today for reliable, high-efficiency power supply tailored for medical devices. With ultra-low leakage current and comprehensive safety certifications, this 220W adapter supports a wide input voltage range from 80VAC to 264VAC, making it suitable for portable dialysis machines, clinical monitors, and other medical equipment. Its fanless design allows operation in temperatures from -30°C to +70°C, ensuring durability and safety. Enjoy fast shipping and confidence with our 3-year warranty, guaranteeing high-quality performance for your medical applications.
Order your Energy Efficient Medical Power Supply GSM220B series today and ensure your medical devices operate safely, reliably, and with high efficiency.
Frequently Asked Questions
Where can I buy MEAN WELL GSM220B12R7B?
You can click on the BUY or RFQ button to purchase GSM220B12R7B from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part GSM220B12R7B?
You can download the GSM220B12R7B datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of GSM220B12R7B?
MEAN WELL
