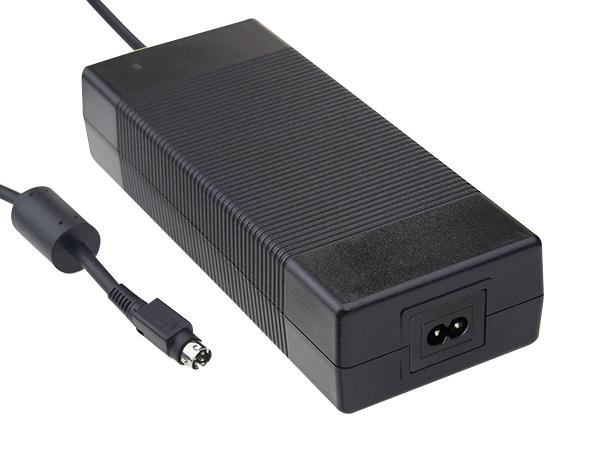

MEAN WELL GSM220B15R7B Medical Power Adapter
GSM220B is a highly reliable, 220W medical power adaptor series designed for medical equipment with full safety features and high efficiency up to 94.5%. It offers an input range of 80VAC to 264VAC, low leakage current under 100μA, and complies with international standards (2*MOPP). Its design includes a fully enclosed plastic case, active PFC, and protections like overvoltage and overtemperature. Suitable for medical devices such as clinical workstations, hemodialysis machines, and portable diagnostic tools, it ensures safety, stability, and energy efficiency.
MEAN WELL GSM220B15R7B Medical Power Adapter Specifications:
- Input Voltage Range: 80VAC to 264VAC
- Output Voltage: 12V, 18V, 20V, 24V, 48V (various models)
- Rated Power: 180W to 220W
- Efficiency: Up to 94.5%
- Leakage Current: <100μA
- No Load Power Consumption: <0.15W
- Output Ripple & Noise: Max 450mVp-p
- Line Regulation: ±1.0%
- Load Regulation: ±2.0% to ±5.0%
- Working Temperature: -30°C to +70°C
- Protection: Short Circuit, Overload, Overvoltage, Overtemperature
- Isolation Level: 2xMOPP
- Enclosure: Fully enclosed plastic case, Flame retardant 94V-0
- Dimensions: Approximate 85mm x 46mm x 24mm
- Certifications: UL60601-1, TUV EN60601-1, FCC, EN55011, EN61000-3-2/3
- Warranty: 3 years
Buy the Ecogreen Series Medical Power Supply GSM220B: 220W High Reliability Medical Adapter
Purchase the Ecogreen Series GSM220B 220W medical power adapter online today and ensure your medical devices operate with maximum reliability and safety. This high-efficiency, low-leakage adaptor is compliant with international standards, designed specifically for medical equipment like dialysis machines, diagnostic devices, and portable systems. Its rugged plastic enclosure provides durability, while protections against overvoltage and overheating guarantee system safety. With a 3-year warranty and energy-saving features, it's the ideal choice for healthcare professionals seeking high-quality power solutions.
Buy Ecogreen Series GSM220B 220W medical power supply now and experience unmatched reliability, energy efficiency, and safety for vital medical equipment.
Frequently Asked Questions
Where can I buy MEAN WELL GSM220B15R7B?
You can click on the BUY or RFQ button to purchase GSM220B15R7B from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part GSM220B15R7B?
You can download the GSM220B15R7B datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of GSM220B15R7B?
MEAN WELL
