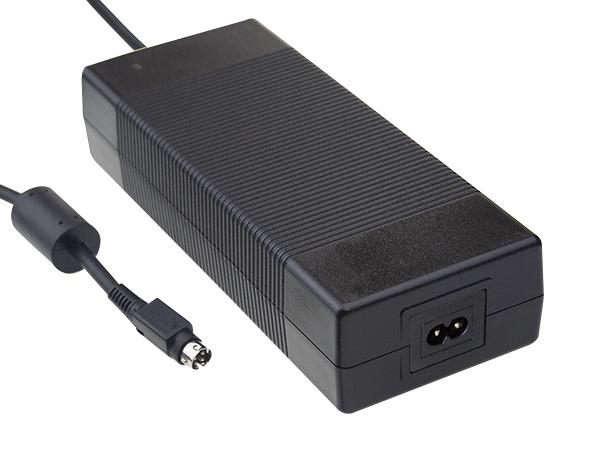

MEAN WELL GSM220B48R7B Medical Power Adapter
GSM220B is a highly reliable 220W medical power adapter designed for various healthcare devices such as portable hemodialysis machines, clinical workstations, and breath machines. It features a universal input range of 80VAC to 264VAC, high efficiency of up to 94.5%, and low leakage current less than 100 microamps, ensuring safety and compliance with international medical standards (2*MOPP). Encased in flame-retardant plastic, it offers overload, over-voltage, and over-temperature protections, making it a robust choice for life-critical applications. Approved with energy-saving features, it supports a wide temperature range of -30°C to +70°C, suitable for demanding medical environments.
MEAN WELL GSM220B48R7B Medical Power Adapter Specifications:
- Input Voltage Range: 80VAC to 264VAC
- Output Voltage: 12V, 18V, 20V, 24V, 48V (various models)
- Rated Power: 180W to 220W
- Efficiency: Up to 94.5%
- Leakage Current: <100 microamps
- Working Temperature: -30°C to +70°C
- Protections: Short circuit, Overload, Over voltage, Over temperature
- Safety Standards: IEC60601-1, EN60601-1, UL, TUV
- Dimensions: 210mm x 85mm x 46mm
- Built-in Active PFC
- No load Power Consumption: <0.15W
- Enclosure: Fully enclosed flame-retardant plastic case
- Environmental Compliance: EISA 2007/DoE, NRCan, MEPS, EU ErP, CoC V5
- Approval: Medical safety, 2 x MOPP isolation
- Working Humidity: 20% to 90% RH non-condensing
- MTBF: 208,660 hours at 25°C
- Protection Type: Hiccup mode, automatic recovery
- Input Frequency: 47-63Hz
Buy the Buy Medical Power Supply Part Number GSM220B48R7B Online
Purchase the GSM220B48R7B medical power adapter online today to ensure reliable, efficient power for your healthcare devices. Featuring advanced protections, high efficiency up to 94.5%, and compliance with international safety standards, this adapter is perfect for medical equipment like hemodialysis machines, clinical workstations, and breath devices. Its rugged flame-retardant case and automatic fault recovery provide safety and durability in demanding environments. Enjoy fast delivery and support, making it a smart choice for medical professionals seeking dependable power solutions.
Get GSM220B48R7B today—built for medical safety and high efficiency, perfect for healthcare devices requiring reliable power.
Frequently Asked Questions
Where can I buy MEAN WELL GSM220B48R7B?
You can click on the BUY or RFQ button to purchase GSM220B48R7B from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part GSM220B48R7B?
You can download the GSM220B48R7B datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of GSM220B48R7B?
MEAN WELL
