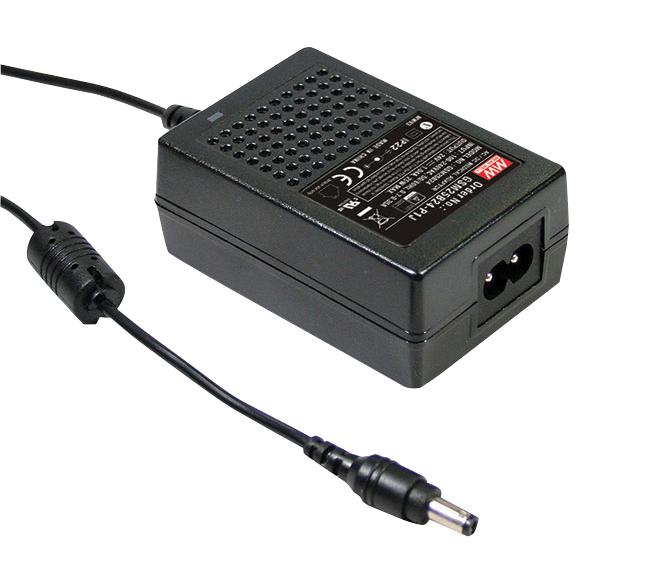

MEAN WELL GSM25B48P1J Medical Power Adapter
The GSM25B series is a reliable 25W medical power adaptor designed for miniature medical devices with medical safety standards (2 x MOPP). It features an efficiency of up to 88%, low no-load power consumption below 0.1W, and complies with international environmental and safety certifications. Suitable for applications like blood glucose meters, blood pressure monitors, nebulizers, and portable medical devices, it operates from 80VAC to 264VAC, providing various output voltages up to 48VDC, with integrated protections for safety and durability.
MEAN WELL GSM25B48P1J Medical Power Adapter Specifications:
- Input Voltage Range: 80VAC to 264VAC, 47~63Hz
- Output Power: 25W with multiple voltages including 5V, 7.5V, 15V, 18V, 24V, 48V
- Rated Current: 4A, 2.93A, 1.664A, 1.384A, 1.044A, 0.524A
- Ripple & Noise: 60mVp-p to 240mVp-p depending on model
- Voltage Tolerance: ±2% to ±6%
- Line & Load Regulation: ±1% to ±6% depending on model
- Efficiency: Up to 88%
- No Load Power Consumption: <0.1W
- Operating Temperature: -25°C to +60°C
- Safety Certifications: UL60601-1, EN60601-1, TUV
- Protection: Short Circuit, Overload, Overvoltage
- Dimensions: 79mm x 54mm x 33mm
- Housing: Fully enclosed plastic case
- Leakage Current: <50μA
- Warranty: 3 years
Buy the Mean Well Series GSM25 25W Medical Adapter: GSM25B48P1J
Discover the dependable and energy-efficient medical power adapter, ideal for critical portable healthcare devices such as blood glucose meters, blood pressure monitors, and nebulizers. Certified for safety and compliance with international standards, it ensures patient protection through double insulation and low leakage current. With an efficiency reaching 88%, low no-load power consumption, and multiple output voltages, this 25W adapter offers durability and peace of mind for medical professionals. Easy to integrate with locking options, it guarantees consistent performance within a compact design for various medical applications.
Get Mean Well GSM25B48P1J today—built for medical safety, efficiency, and long-lasting reliability in demanding healthcare environments.
Frequently Asked Questions
Where can I buy MEAN WELL GSM25B48P1J?
You can click on the BUY or RFQ button to purchase GSM25B48P1J from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part GSM25B48P1J?
You can download the GSM25B48P1J datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of GSM25B48P1J?
MEAN WELL
