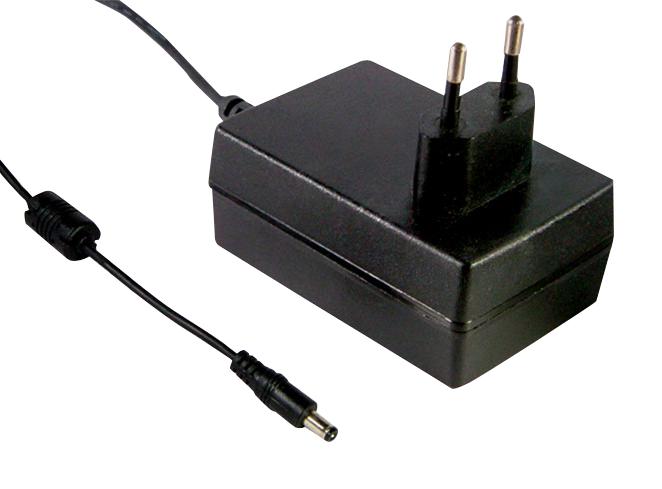

MEAN WELL GSM25E05P1J Medical Power Adapter
GSM25E series is a high-reliability, medical-grade 25W power adapter designed for portable and medical devices. It features universal input voltage (80-264VAC), low leakage current (<50μA), high efficiency (up to 88%), and low no-load power consumption (<0.1W). The fully enclosed plastic case provides double insulation for safety, with protections against short circuit, overload, and overvoltage. Approved for medical safety standards, it supports BF application with a 2x MOPP isolation, making it suitable for use with blood glucose meters, blood pressure monitors, nebulizers, inhalers, and other portable medical equipment.
MEAN WELL GSM25E05P1J Medical Power Adapter Specifications:
- Input Voltage: 80VAC to 264VAC
- Output Power: 20W to 25W depending on model
- Output Voltage Options: 5V, 7.5V, 15V, 18V, 24V, 48V
- Rated Current: 4A at 5V, 2.93A at 7.5V, 1.664A at 15V, 1.384A at 18V, 1.044A at 24V, 0.524A at 48V
- Ripple & Noise: Max 60mVp-p to 240mVp-p depending on voltage
- Voltage Tolerance: ±2% to +6%, depending on model
- Efficiency: Up to 88%
- No-load Power Consumption: <0.1W
- Protections: Short circuit, Overload, Overvoltage
- Temperature Range: Operating from -25°C to +60°C, Storage -40°C to +85°C
- Dimensions: 79×54×33 mm
- Safety Certifications: EN60601-1, TUV, UL1185
- Safety Standards: 2x MOPP isolation, suitable for BF application
- MTBF: Approx 796,700 hours with MIL-HDBK-217F at 25°C
- Enclosure: Fully plastic, flame-retardant (94V-0)
Buy the Buy Reliable Medical Adapter Part Number GSM25E05P1J Online
Purchase the GSM25E series medical power adapter online today and benefit from high efficiency, excellent safety standards, and versatile output options. This 25W device is ideal for portable medical equipment such as blood glucose meters, blood pressure monitors, inhalers, and nebulizers. Certified for medical safety with 2x MOPP isolation, it ensures patient safety while providing up to 88% efficiency. With low no-load power consumption, compact design, and durable plastic enclosure, this adapter guarantees reliable performance in demanding medical environments. Fast delivery and easy online ordering available.
Buy GSM25E05P1J medical power adapter now and ensure safe, efficient power for portable and medical devices with high reliability and low energy consumption.
Frequently Asked Questions
Where can I buy MEAN WELL GSM25E05P1J?
You can click on the BUY or RFQ button to purchase GSM25E05P1J from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part GSM25E05P1J?
You can download the GSM25E05P1J datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of GSM25E05P1J?
MEAN WELL
