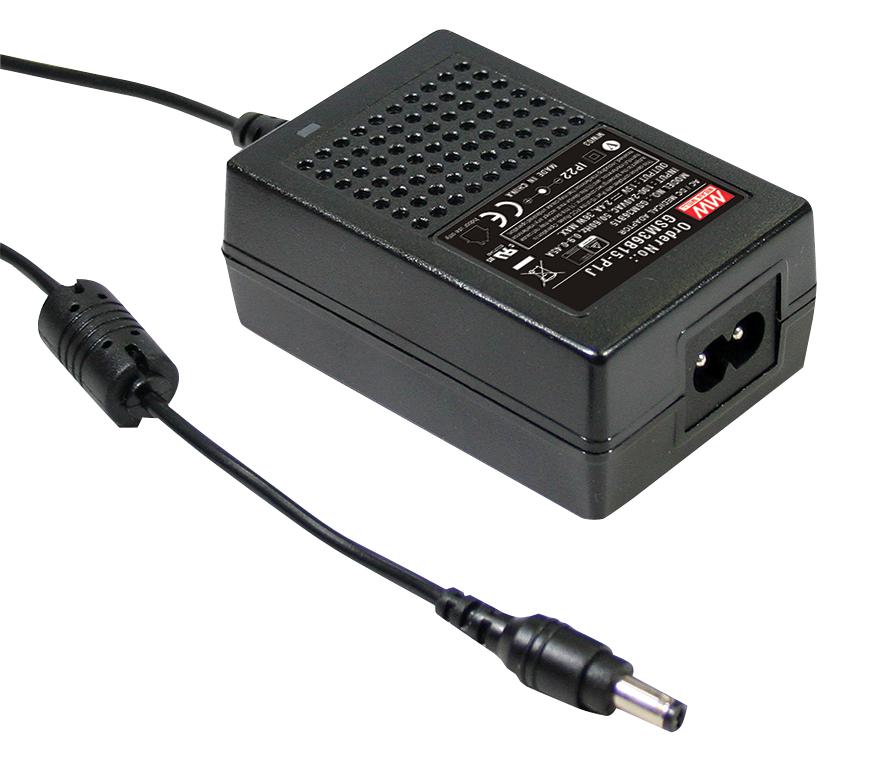

MEAN WELL GSM36B05P1J Medical Power Adapter
The GSM36B series offers 36W reliable medical power adapters designed for medical devices requiring high safety standards like blood glucose meters, blood pressure monitors, nebulizers, and inhalers. Featuring universal input from 80VAC to 264VAC and multiple output voltages from 5VDC to 48VDC, these adapters comply with international safety certifications, including 2× MOPP isolation, UL 60601-1, and IEC standards. They boast high efficiency up to 88%, ultra-low leakage current below 50uA, compact plastic case, and support for both fixed and optional lockable DC plugs, ensuring safe, energy-efficient operation in medical environments.
MEAN WELL GSM36B05P1J Medical Power Adapter Specifications:
- Power Output: 36W
- Input Voltage: 80VAC to 264VAC
- Output Voltage: 5VDC to 48VDC (various models: 5V, 7V, 9V, 12V, 15V, 18V, 24V, 48V)
- Rated Current: 4A for 5V, 3A for 7V, 2.44A for 9V, 2A for 12V, 1.58A for 15V, 0.75A for 18V
- Efficiency: Up to 88%
- Leakage Current: Less than 50uA
- Protection: Short circuit, Overload, Over voltage
- Operating Temperature: -25°C to +60°C
- Humidity: 20% to 90% RH non-condensing
- Certifications: UL60601-1, IEC60601-1, EN60601-1
- Dimensions: 79mm x 54mm x 33mm
- Plastic Case: Fully enclosed, flame retardant
- Power Indicator: LED
- Optional DC lock plug available
- Burn-in Test: 100% full load
- Warranty: 3 years
Buy the Reliable Medical Power Supply for Medical Devices
Purchase the GSM36B series medical power adapters online today and enjoy reliable, energy-efficient power solutions for a variety of medical devices. Designed with high efficiency up to 88%, UL60601-1 safety compliance, and ultra-low leakage current under 50uA, these adaptable adapters support universal input voltage from 80VAC to 264VAC. They feature multiple output options from 5V to 48V, ensuring compatibility with devices like blood glucose meters, blood pressure monitors, and nebulizers. Benefit from a compact, fully enclosed plastic case, optional lockable DC plugs, and a 3-year warranty for peace of mind in medical environments.
Buy GSM36B series medical adaptors now and ensure safe, energy-efficient power for critical healthcare applications with high reliability.
Frequently Asked Questions
Where can I buy MEAN WELL GSM36B05P1J?
You can click on the BUY or RFQ button to purchase GSM36B05P1J from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part GSM36B05P1J?
You can download the GSM36B05P1J datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of GSM36B05P1J?
MEAN WELL
