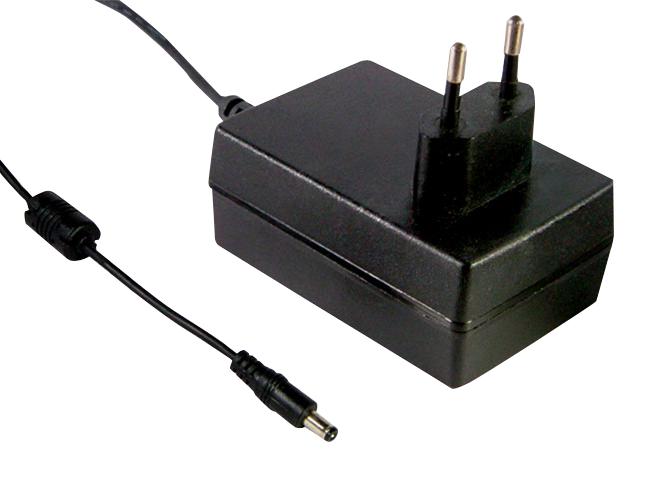

MEAN WELL GSM36E18P1J Medical Power Supply
GSM36E series is a high-reliability, 36W medical power supply with a compact, wall-mounted design. It features universal AC input (80-264VAC), multiple output voltages from 5VDC to 48VDC, and meets international medical safety standards (2 x MOPP). The series boasts high efficiency up to 88%, very low no-load power consumption under 0.1W, and includes protections against short circuits, overloads, and overvoltage. Approved for applications like medical monitors, nebulizers, and portable devices, it provides reliable energy for critical healthcare equipment in demanding environments, ensuring safety and adherence to EMC standards.
MEAN WELL GSM36E18P1J Medical Power Supply Specifications:
- Input Voltage: 80-264VAC, 47-63Hz
- Output Voltage: 18V DC
- Rated Power: 36W
- Rated Current: 2A
- Ripple & Noise: 150mVp-p
- Voltage Tolerance: ±3.0%
- Line Regulation: ±1.0%
- Load Regulation: ±3.0%
- Efficiency: Up to 88%
- No Load Power Consumption: <0.1W
- Protection: Short Circuit, Overload, Over Voltage
- Operating Temperature: -25°C to +60°C
- Dimensions: 79mm x 54mm x 33mm
- Safety Certifications: TUV EN60601-4 / 60601-1-11
- Housing: Fully enclosed plastic case
- Leakage Current: <50μA at 264VAC
- MTBF: 657,400 hours
- Standards: Complies with EMC EN55011 class B and EN61000-4 series
Buy the Medical Series Power Supply: GSM36E18 P1J
Enhance your medical device performance with the GSM36E18P1J high-reliability power supply featuring universal input, high efficiency up to 88%, and certifications meeting international safety standards. Its compact, fully enclosed plastic case provides optimal insulation and durability for hospital, portable, and diagnostic equipment. Designed for safety and energy efficiency, this 36W module includes protections against short circuits, overloads, and overvoltage, ensuring continuous operation even in demanding environments. Purchase online to secure dependable power for sensitive healthcare devices with guaranteed quality, safety, and long-term stability.
Buy GSM36E18 P1J medical power supply now and experience unmatched reliability and performance for critical healthcare applications.
Frequently Asked Questions
Where can I buy MEAN WELL GSM36E18P1J?
You can click on the BUY or RFQ button to purchase GSM36E18P1J from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part GSM36E18P1J?
You can download the GSM36E18P1J datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of GSM36E18P1J?
MEAN WELL
