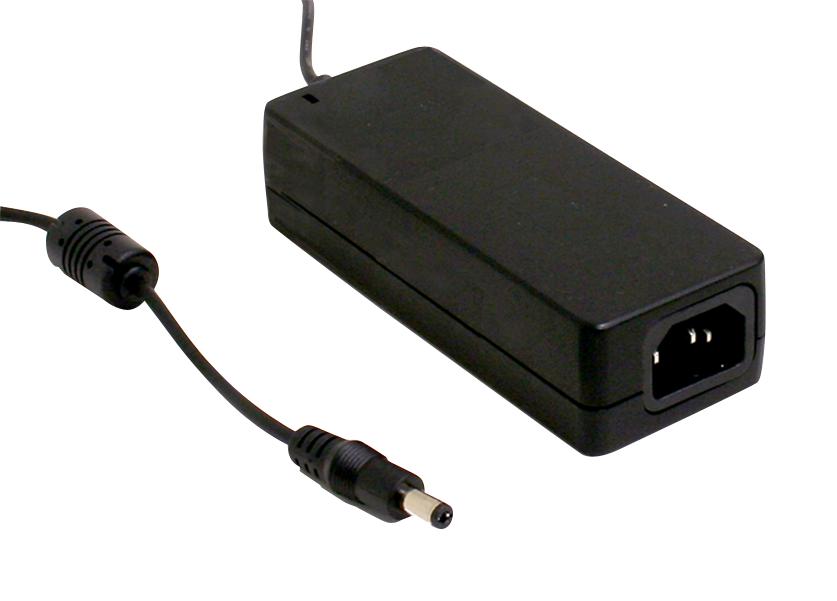

MEAN WELL GSM40A48P1J Medical Power Adapter
GSM40A is a high-reliability, 40W medical power adaptor designed for various healthcare devices. It features universal input from 80VAC to 264VAC, low leakage current below 100µA, and high efficiency up to 91%. Certified for international medical safety standards, it supports applications like portable hemodialysis, medical monitors, and breath machines. Its fanless design ensures silent operation, with protections against short circuit, overvoltage, and overload. The fully enclosed case and optional lock plug make it suitable for critical medical environments, offering dependable performance and energy savings.
MEAN WELL GSM40A48P1J Medical Power Adapter Specifications:
- Input Voltage: 80VAC to 264VAC
- Output Power: 40W
- Output Voltage: 5V, 7.5V, 12V, 15V, 18V, 24V, 48V
- Rated Current: 0.1~5A (varies by model)
- Ripple & Noise: Max 150mVp-p
- Voltage Tolerance: ±3% to ±5%
- Line & Load Regulation: ±1% to ±5%
- Efficiency: Up to 91%
- Leakage Current: <100µA
- Working Temperature: -30°C to +60°C
- Storage Temperature: -40°C to +85°C
- Protection: Short circuit, Overvoltage, Overload (Hiccup mode)
- Safety Standards: EN60601-1, UL, CE
- Isolation Level: 2x MOPP, Primary-Secondary
- Dimensions: 125x50x31.5mm
- Warranty: 3 years
Buy the Buy Mean Well GSM40A Series Medical Adaptor Part Number GSM40A48P1J Online
Order the Mean Well GSM40A48P1J medical power adaptor online today for reliable, efficient, and safe energy supply to healthcare devices. Designed with universal input voltage, high efficiency up to 91%, and low leakage current, it ensures safe operation in critical medical environments. Certified to meet international safety standards, it boasts a robust case, optional lock plug, and comprehensive protections against short circuit, overvoltage, and overload. Perfect for portable hemodialysis, medical monitors, breath machines, and other vital medical equipment, ensuring continuous, safe power supply and energy savings.
Get Mean Well GSM40A48P1J today—built for precision, high efficiency, and long-lasting durability in medical applications.
Frequently Asked Questions
Where can I buy MEAN WELL GSM40A48P1J?
You can click on the BUY or RFQ button to purchase GSM40A48P1J from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part GSM40A48P1J?
You can download the GSM40A48P1J datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of GSM40A48P1J?
MEAN WELL
