MEAN WELL GSM40B48P1J Medical Power Supply
GSM40B series is a highly reliable, 40W medical adaptor designed for medical devices requiring high efficiency and ultra-low leakage current. It features universal input from 80VAC to 264VAC, complies with international medical safety standards (2*MOPP), and offers output voltages from 5V to 48V. The adaptor includes built-in active PFC, high efficiency up to 91%, and a fanless, fully enclosed plastic case. Its low no-load power consumption and compliance with global environmental standards make it suitable for medical applications such as monitors, portable hemodialysis machines, and other critical medical equipment.
MEAN WELL GSM40B48P1J Medical Power Supply Specifications:
- Input Voltage: 80VAC to 264VAC
- Output Voltage: 5V, 7.5V, 12V, 15V, 18V, 24V, 48V
- Rated Power: 40W
- Efficiency: Up to 91%
- Leakage Current: <50uA
- Protections: Short circuit, Overload, Over voltage, Over temperature
- Operating Temperature: -30°C to +60°C
- Dimensions: 125 x 50 x 31.5 mm
- Safety Standards: ANSI/AAMI ES60601-1, TUV EN60601-1, IEC60601-1
- Isolation Level: 2xMOPP (primary-secondary)
- Cooling: Fanless design
- Power Indicator: LED
- Certification: UL, CSA, CE, IEC60601-1
- Construction: Fully enclosed plastic case
- Input Connection: IEC320-C8 with optional plug types
- Built-in active PFC circuitry
- No load power consumption: <0.1W

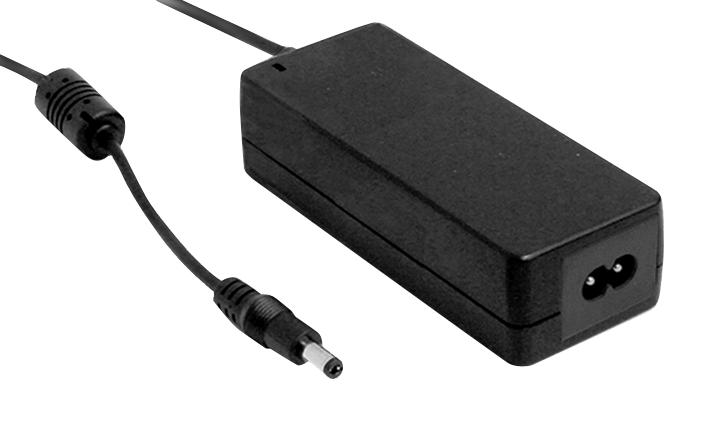

Buy the Mean Well Series GSM40B Medical Power Supply: GSM40B48P1J
Experience the reliability of the GSM40B series, a 40W medical power adapter designed for critical medical devices. Featuring universal input, high efficiency up to 91%, and ultra-low leakage current, it ensures safe power delivery for portable hemodialysis machines, medical monitors, and more. Its fanless construction and fully enclosed plastic case provide durability and quiet operation. Compliant with international safety standards, it offers multiple output voltages from 5V to 48V, and built-in protections safeguard your equipment. Purchase online now for dependable medical power solutions.
Get Mean Well GSM40B48P1J today—built for precision and long-lasting durability in medical applications.
