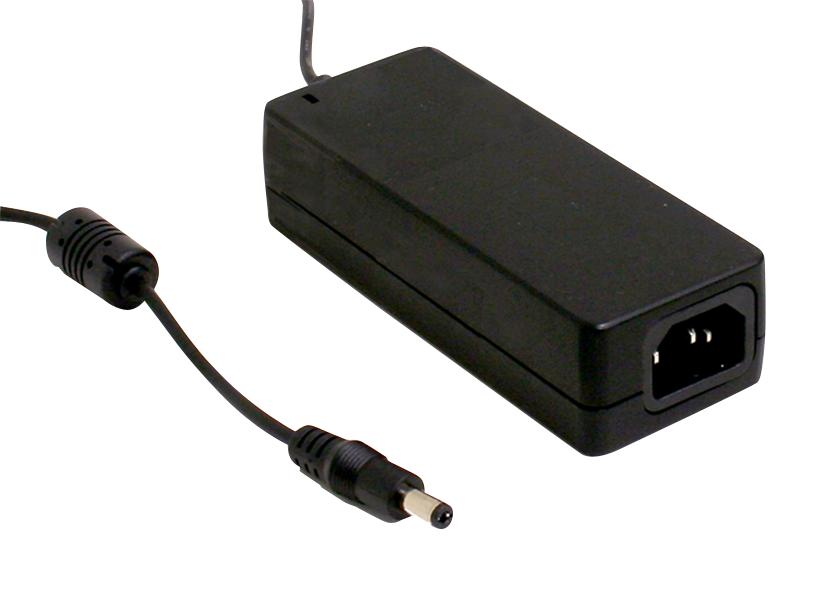

MEAN WELL GSM60A15P1J Medical Power Adapter
GSM60A15P1J is a high-reliability medical power adapter designed for various medical devices, including dialysis and patient monitoring systems. It features universal AC input, high efficiency up to 91%, low leakage current below 100μA, and complies with international safety standards (2*MOPP). The adapter delivers 15VDC output at 4A, with a compact, fully enclosed plastic case, and offers intelligent protections such as overvoltage and overtemperature. Its durable build and energy-saving features make it ideal for medical environments requiring steady, safe power sources.
MEAN WELL GSM60A15P1J Medical Power Adapter Specifications:
- Input Voltage: 80VAC to 264VAC, 47-63Hz
- Output Voltage: 15VDC
- Rated Current: 4A
- Rated Power: 60W
- Ripple & Noise (max): 100mVp-p
- Voltage Tolerance: ±3.0%
- Line Regulation: ±1.0%
- Load Regulation: ±3.0%
- Setup Time: 1500ms @ 115VAC
- Hold Up Time: 15ms @ 115VAC
- Efficiency: Up to 91%
- Leakage Current: <100μA
- Working Temperature: -30°C to +60°C
- Safety Standards: UL, TUV EN60601-1, EN55011, EN61000-3-2/3
- Isolation: 2xMOPP primary-secondary, 1xMOPP primary-earth
- Dimensions: 125*50*31.5mm
- Weight: 0.32kg
Buy the Mean Well GSM60A3 – Reliable Medical Power Adapter for Medical Devices
Purchase the reliable Mean Well GSM60A15P1J medical power adapter online today and ensure your medical devices operate with safe, stable power. Designed to meet international safety standards, it delivers 15VDC at 4A with an efficiency of up to 91%, low leakage current, and full safety certifications. Its compact case and robust protections make it suitable for critical medical applications like dialysis and patient monitoring systems. Enjoy fast delivery, trusted quality, and peace of mind with every purchase.
Get Mean Well GSM60A15P1J today—built for medical safety, high efficiency, and long-lasting durability in demanding healthcare environments.
