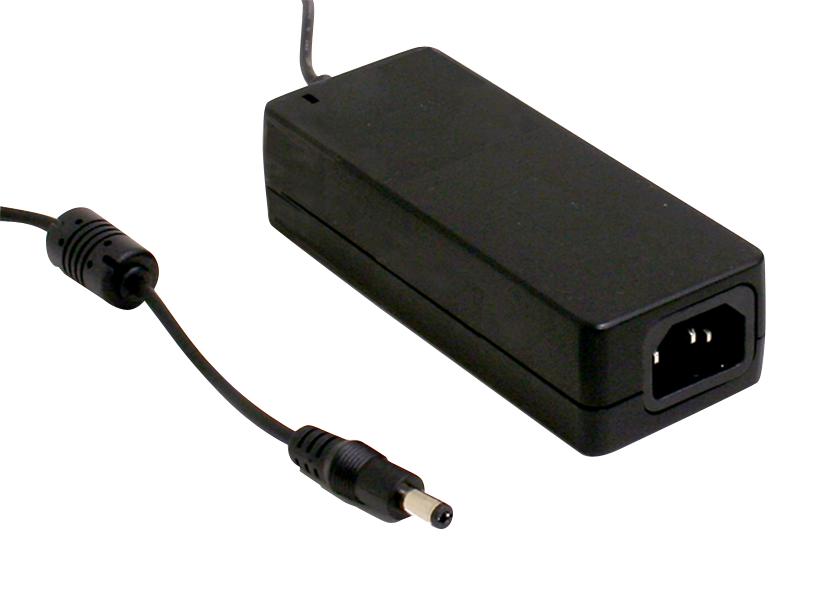

MEAN WELL GSM60A18P1J Medical Power Adapter
GSM60A series is a high-reliability medical power adaptor providing 60W power output with universal AC input and low leakage current. Designed to meet international safety standards, it features high efficiency up to 91%, low no-load power consumption (<0.1W), and a compact plastic case. Suitable for various medical devices such as patient monitors, dialysis machines, and portable ventilators, it offers multiple output voltages, protections against short circuit, overload, overvoltage, and over temperature. The model includes LED indicators, optional locking DC plugs, and is certified for global safety compliance, ensuring safe, energy-efficient operation in medical environments.
MEAN WELL GSM60A18P1J Medical Power Adapter Specifications:
- Input Voltage: 80VAC to 264VAC, 47-63Hz
- Power Output: 60W, 5V to 48VDC options, rated currents up to 6A
- Efficiency: Up to 91%
- Leakage Current: <100uA
- No Load Power Consumption: <0.1W
- Dimensions: 125 x 50 x 31.5mm (LW*H)
- Protection: Short circuit, overload, overvoltage, over temperature, automatic recovery
- Working Temperature: -30°C to +60°C
- Safety Standards: UL60601-1, EN60601-1, certified for medical safety
- Mounting: Fully enclosed plastic case with LED power indicator
- Compliance: EU ErP, CoC V5, MEPS, NRCan, and others for global markets
Buy the Buy Mean Well GSM60A Series 60W Medical Power Adapter Part Number GSM60A18P1J Online
Secure your healthcare devices with the reliable Mean Well GSM60A18P1J medical power adaptor. Designed for safety and efficiency, this 60W model supports a wide input range and delivers consistent output voltages. Its low leakage current, high efficiency of up to 91%, and compact design make it ideal for medical monitors, dialysis, and portable systems. Certified for international safety standards, it features protections against faults, an LED indicator, and optional locking DC plugs. Purchase online to ensure your medical equipment operates safely and efficiently every day.
Order your Mean Well GSM60A18P1J medical power adaptor today and ensure reliable, energy-efficient power for your critical healthcare devices.
Frequently Asked Questions
Where can I buy MEAN WELL GSM60A18P1J?
You can click on the BUY or RFQ button to purchase GSM60A18P1J from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part GSM60A18P1J?
You can download the GSM60A18P1J datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of GSM60A18P1J?
MEAN WELL
