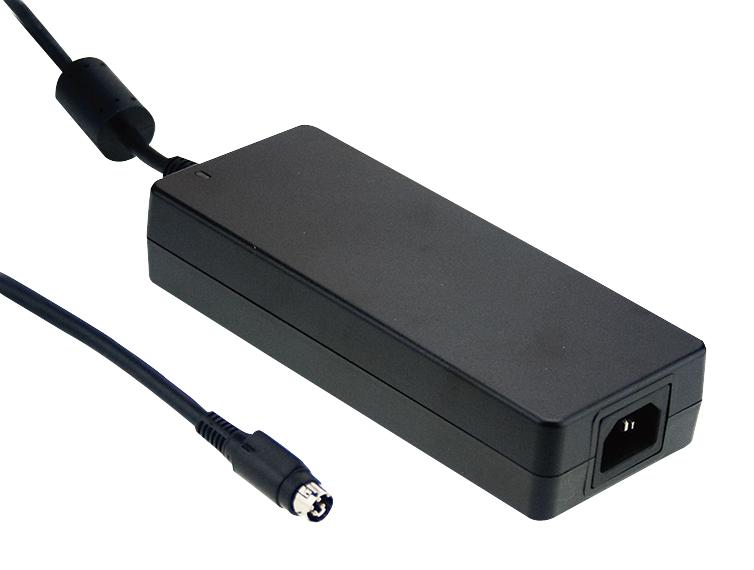

MEAN WELL GST160A20R7B industrial power adapter
The GST160A series is a high-reliability, 160W industrial power adapter designed for various electronic and industrial applications. Featuring universal AC input from 85VAC to 264VAC, it supports output voltages from 12V to 48V with efficiencies up to 94% and low no-load power consumption below 0.15W. Encased in flame-retardant plastic, the series provides protections against short circuits, overloads, overvoltage, and temperature extremes. Suitable for telecommunication, automation, and consumer electronics, it complies with international safety and energy efficiency standards and offers fanless operation with a wide working temperature range.
MEAN WELL GST160A20R7B industrial power adapter Specifications:
- Input Voltage: 85-264VAC, 120-370VDC
- Output Power: 160W
- Output Voltage Options: 12V, 18V, 20V, 24V, 48V
- Rated Current: 11.54A for 12V, 9.64A for 18V, 8A for 20V, 6.67A for 24V, 3.34A for 48V
- Ripple & Noise: 80-240mVp-p depending on model
- Voltage Tolerance: +5.0% to 3.0%
- Line Regulation: 1.0% to 1.0%
- Load Regulation: 5.0% to 3.0%
- Efficiency: Up to 94%
- Protection Features: Short Circuit, Overload, Overvoltage, Over Temperature
- Derating Temperature: -30°C to +70°C
- Operating Humidity: 20%-90% RH (non-condensing)
- Working Temperature: -30°C to +70°C
- Dimensions: 175mm x 72mm x 35mm
- Certifications: UL, CSA, TUV, BSMI, CCC, PSE, AS/NZS
- MTBF: 236,400 hours
Buy the Industrial Power Supply Series GST Series 160W: GST160A20
Enhance your electronic and industrial setups with this high-reliability GST160A series 160W power adapter. Suitable for diverse applications, it features a wide input voltage range, high efficiency up to 94%, and low no-load power consumption below 0.15W. Its fanless design ensures quiet operation, while protections against short circuits, overloads, and temperature extremes safeguard your equipment. Certifications and adherence to international standards make it a dependable choice for telecommunication, automation, and consumer electronics, providing long-term performance and energy savings.
Buy GST160A20 now and experience unmatched reliability and performance in industrial power solutions with extensive safety protections.
