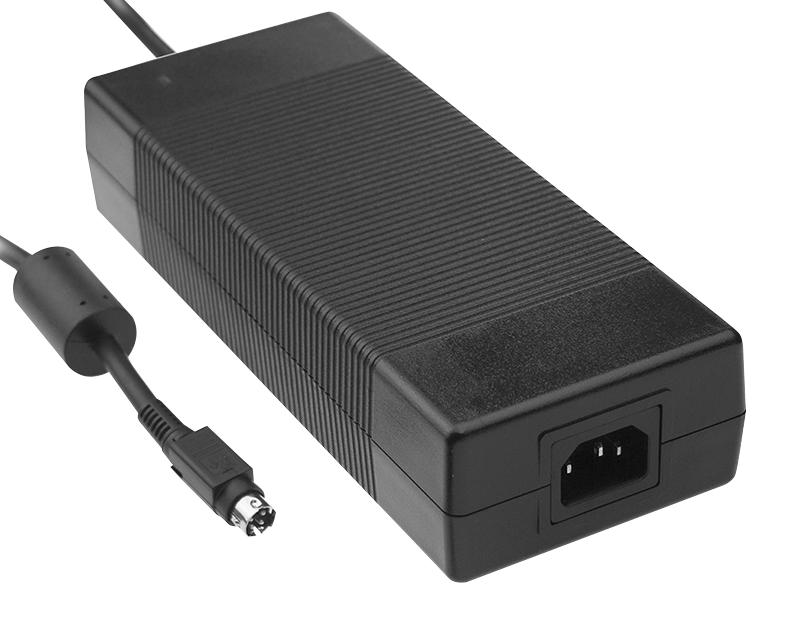

MEAN WELL GST220A36R7B Industrial Power Supply
GST220A36R7B is a highly reliable 220W industrial-grade AC-DC power adaptor designed for demanding applications. It features universal input from 85VAC to 264VAC, with an efficiency of up to 94.5% and low no-load power consumption below 0.15W. The unit provides a stable 36V output at a rated current of 6.11A, with protections against short circuit, overcurrent, overvoltage, and overtemperature. Its fanless, fully enclosed plastic case ensures durability in harsh environments, operating from -30°C to +70°C. Certified for international safety and EMC standards, it is ideal for industrial, telecommunication, and consumer electronics.
MEAN WELL GST220A36R7B Industrial Power Supply Specifications:
- Input Voltage Range: 85VAC to 264VAC, 47-63Hz
- Output Voltage: 36V (Note: specific to model), Rated Current: 6.11A
- Rated Power: 220W, Max Power: 240W
- Efficiency: Up to 94.5%, No-load Power: <0.15W
- Protections: Short circuit, Overload, Overvoltage, Over temperature
- Operating Temperature: -30°C to +70°C, Derating as per curve
- Storage Temperature: -40°C to +85°C
- Dimensions: 210mm x 85mm x 46mm, Fully enclosed plastic case
- Safety Certifications: UL, CSA, TUV, BSMI, CCC, PSE, AS/NZS
- Compliance: EN55022 Class B, EN61000-3-2/3, FCC Part 15, CISPR22 Class B
- MTBF: 209,400 hours (MIL-HDBK-217F at 25°C)
Buy the Mean Well GST220A – Reliable 36V Power Supply for Industrial Applications
Purchase the reliable and efficient industrial power supply suitable for demanding environments online now. The GST220A series features a 36V output, high efficiency up to 94.5%, low standby power, and full safety certifications, making it perfect for industrial, telecommunication, and consumer electronic applications. Its robust design ensures durability from -30°C to +70°C, with protections against short circuit, overload, overvoltage, and overtemperature. Order today to ensure your equipment has a stable and safe power source, backed by a 3-year warranty.
Get Mean Well GST220A36R7B today—built for rugged industrial use with high efficiency and comprehensive protections.
Frequently Asked Questions
Where can I buy MEAN WELL GST220A36R7B?
You can click on the BUY or RFQ button to purchase GST220A36R7B from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part GST220A36R7B?
You can download the GST220A36R7B datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of GST220A36R7B?
MEAN WELL
