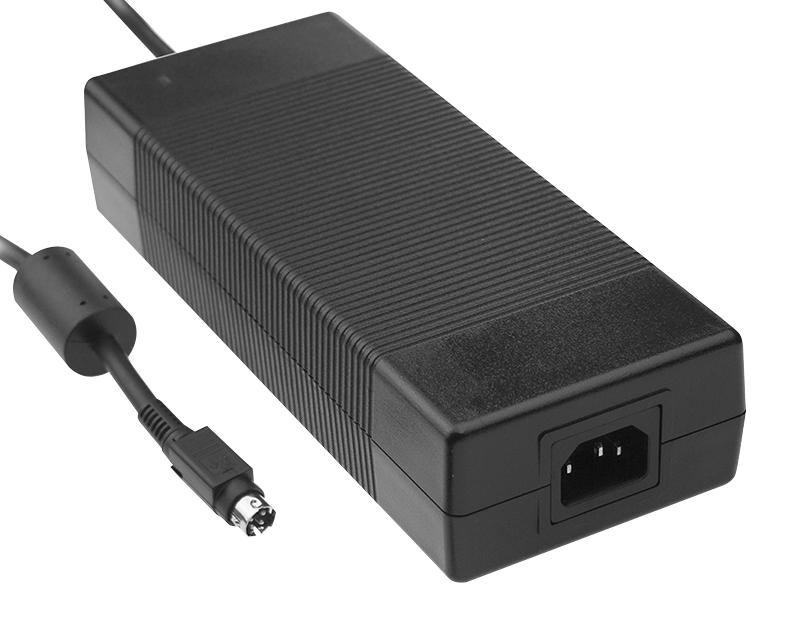

MEAN WELL GST220A48R7B industrial power adaptor
GST220A48R7B is a high-reliability 220W industrial-grade AC/DC power adaptor designed for versatile applications including consumer electronics, telecommunication equipment, and industrial devices. This fully enclosed, fanless power supply features an input range from 85VAC to 264VAC, with an efficiency up to 94.5% and very low no-load power consumption below 0.15W. Compliant with multiple international safety standards, it incorporates protections for short circuit, overload, over voltage, and over temperature, ensuring safety and reliability in demanding environments. The unit is constructed with flame-retardant plastic, includes LED indicators for power, and is suitable for operating temperatures from -30°C to +70°C.
MEAN WELL GST220A48R7B industrial power adaptor Specifications:
- Input Voltage: 85VAC to 264VAC
- Output Voltage: 12V, 18V, 20V, 48V (model dependent)
- Output Power: 180W to 220W (model dependent)
- Efficiency: Up to 94.5%
- Ripple & Noise: Max. 60mVp-p (12V output), Max. 240mVp-p (48V output)
- Voltage Tolerance: ±5%
- Line Regulation: 1.0%
- Load Regulation: 2-5% (model dependent)
- Protections: Short circuit / Overload / Over voltage / Over temperature
- Operating Temperature: -30°C to +70°C
- Dimension: 210 x 85 x 46 mm (L x W x H)
- Safety Standards: UL, CSA, TUV, BSMI, CCC, PSE, AS/NZS
- MTBF: 209,400 hours (min.)
- Working Humidity: 20% to 90% RH non-condensing
- Storage Temperature: -40°C to +85°C
- Input Frequency: 47-63Hz
Buy the Buy Reliable Industrial Power Supply Part Number GST220A48R7B Online
Purchase the GST220A48R7B industrial power adaptor online today and enjoy a highly reliable, high-efficiency power supply suitable for demanding industrial and electronic applications. Featuring a universal input range from 85VAC to 264VAC, low no-load power consumption below 0.15W, and multiple safety protections including short circuit, overload, and over temperature, this durable, flame-retardant plastic enclosure ensures safety, longevity, and compliance with international standards. Suitable for operating temperatures between -30°C to +70°C, it’s the perfect choice for professional and industrial environments seeking dependable power solutions.
Order your reliable GST220A48R7B industrial power adaptor today and ensure your equipment operates safely with high efficiency and robust protections.
Frequently Asked Questions
Where can I buy MEAN WELL GST220A48R7B?
You can click on the BUY or RFQ button to purchase GST220A48R7B from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part GST220A48R7B?
You can download the GST220A48R7B datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of GST220A48R7B?
MEAN WELL
