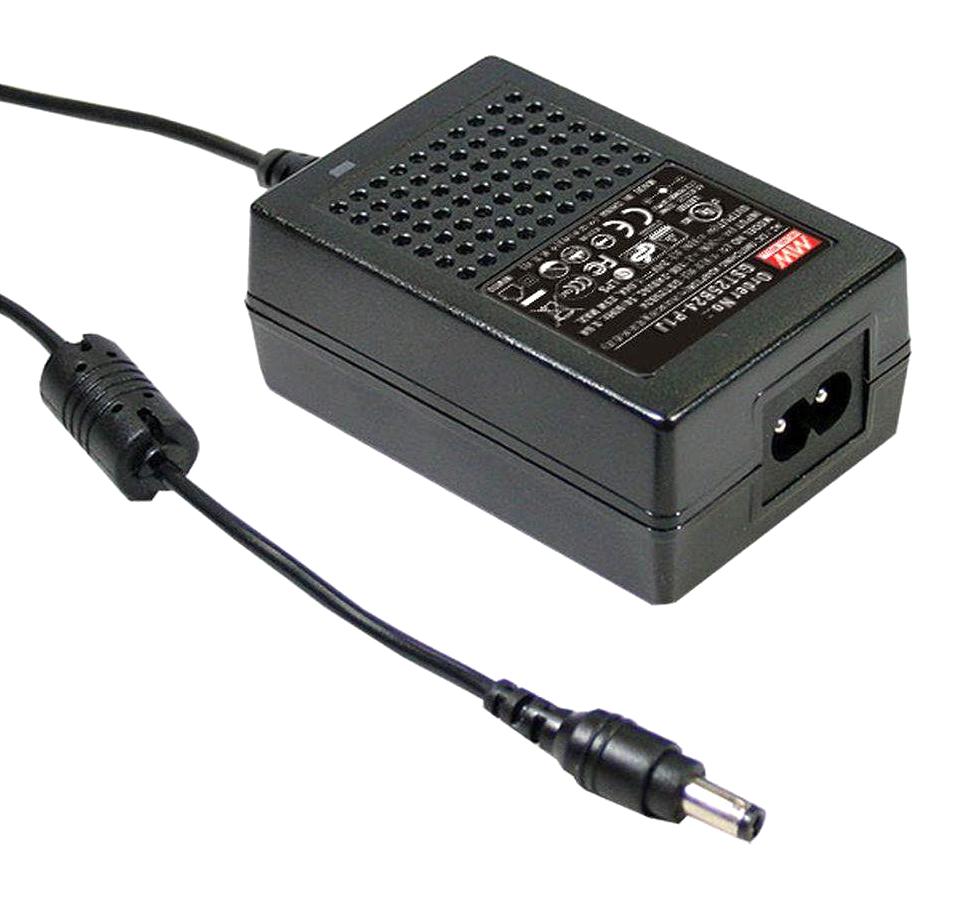

MEAN WELL GST25B28P1J Industrial Power Adapter
The GST25B series is a highly reliable, 25W desktop-style industrial power adaptor designed for various consumer electronic and industrial applications. It features universal input voltage (85-264VAC), high efficiency up to 89%, and low no-load power consumption below 0.075W, complying with international energy efficiency standards like EU ErP and CoC V5. The device provides a fully enclosed plastic case with double insulation for safety, an LED power indicator, and protections against short circuits, overloads, and overvoltage. Certified for safety standards worldwide, it operates over a wide temperature range from -30°C to +70°C, making it suitable for demanding industrial environments.
MEAN WELL GST25B28P1J Industrial Power Adapter Specifications:
- Input Voltage: 85-264VAC, 47-63Hz
- Output Voltage: 28VDC
- Rated Current: 0.52A
- Rated Power: 25W
- Ripple & Noise: 150mVp-p
- Voltage Tolerance: +20%
- Line Regulation: +1.0%
- Load Regulation: +20%
- Efficiency: Up to 89%
- Operating Temperature: -30°C to +70°C
- Protection: Short circuit, Overload, Overvoltage
- Safety Standards: UL60950-1, CU, TUV EN60950-1, CE
- Dimensions: 79×54×33mm (L×W×H)
- Isolation Resistance: 100M Ohms/500VDC
- Derating: Yes, under low input voltage
- Enclosure: Fully enclosed plastic case with double insulation
- Certifications: UL, CE, TUV, CB, CCC, KC, EAC, BSMI, PSE
Buy the Buy MEAN WELL GST25B28P1J Industrial Power Adaptor Part Number GST25B28P1J Online
Purchase the MEAN WELL GST25B28P1J industrial power adaptor online today. This 25W unit features universal input, high efficiency up to 89%, low no-load power consumption below 0.075W, and comprehensive safety certifications including UL, CE, and TUV. Designed for both consumer and industrial applications, it operates over a wide temperature range from -30°C to +70°C and offers reliable protection against short circuits, overloads, and overvoltage. Its compact, fully enclosed plastic case ensures safety and durability, making it an ideal choice for demanding environments.
Get MEAN WELL GST25B28P1J today—built for precision, reliable performance, and long-lasting durability in industrial environments.
Frequently Asked Questions
Where can I buy MEAN WELL GST25B28P1J?
You can click on the BUY or RFQ button to purchase GST25B28P1J from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part GST25B28P1J?
You can download the GST25B28P1J datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of GST25B28P1J?
MEAN WELL
