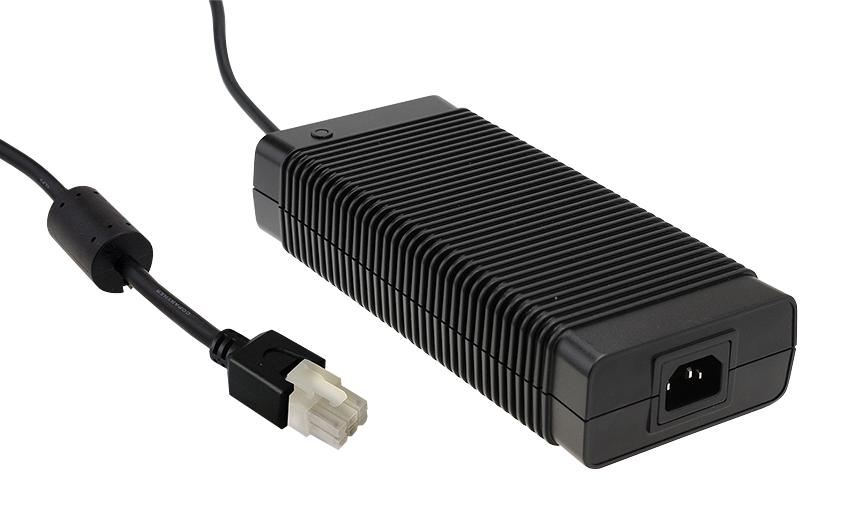

MEAN WELL GST280A20C6P Industrial Power Adapter
GST280A series is a highly reliable, 280W industrial power adapter with a full range input of 85-264VAC, designed for industrial and electronic devices. Featuring a fanless design, low no-load power consumption below 0.5W, and high efficiency up to 94%, it complies with international standards including EU ErP and DoE. The series includes models with output voltages from 12V to 48V, suitable for telecommunication, consumer electronics, and industrial equipment, offering protections like overload, overvoltage, and temperature regulation for robust operation in harsh environments.
MEAN WELL GST280A20C6P Industrial Power Adapter Specifications:
- Input Voltage Range: 85-264VAC
- Output Power: 280W
- Output Voltage: 12V, 15V, 20V, 24V, 48V
- Rated Current: 21A at 12V, 17A at 15V, 13A at 20V, 11.67A at 24V, 5.84A at 48V
- Ripple & Noise: 120mVp-p (12V), 420mVp-p (15V), 450mVp-p (20V), 280mVp-p (24V), 260mVp-p (48V)
- Voltage Tolerance: ±5.0%
- Line Regulation: ±1.0%
- Load Regulation: 5.0% (12V), 5.0% (15V), 4.0% (20V), 3.0% (24V), 2.0% (48V)
- Efficiency: Up to 94%, typical 89.5-93%
- Working Temperature: -30°C to +70°C
- Protection: Overload, Overvoltage, Over temperature
- Dimensions: 220mm x 95mm x 46mm
- Certifications: UL, CSA, TUV, BSMI, CCC, PSE, AS/NZS
- Working Humidity: 20% to 90% RH, non-condensing
- Storage Temp.: -40°C to +85°C
- Vibration: 10-500Hz, 2G
- MTBF: 181.24K hours
Buy the Generic 280W – Reliable Industrial Power Adapter for Electronic Devices
Experience the reliability and efficiency of the 280W industrial power adapter. Designed for harsh environments, it provides stable outputs with protections for overload, overvoltage, and temperature. Its compact, fanless design ensures quiet operation and durability. Suitable for industrial automation, telecommunication, and consumer electronics, it features a wide input voltage range of 85-264VAC, high efficiency up to 94%, and low no-load power consumption below 0.5W. Perfect for demanding industrial and electronic applications, ensuring consistent performance and compliance with global safety standards.
Get GST280A20C6P today—built for precision and long-lasting durability in industrial environments.
Frequently Asked Questions
Where can I buy MEAN WELL GST280A20C6P?
You can click on the BUY or RFQ button to purchase GST280A20C6P from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part GST280A20C6P?
You can download the GST280A20C6P datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of GST280A20C6P?
MEAN WELL
