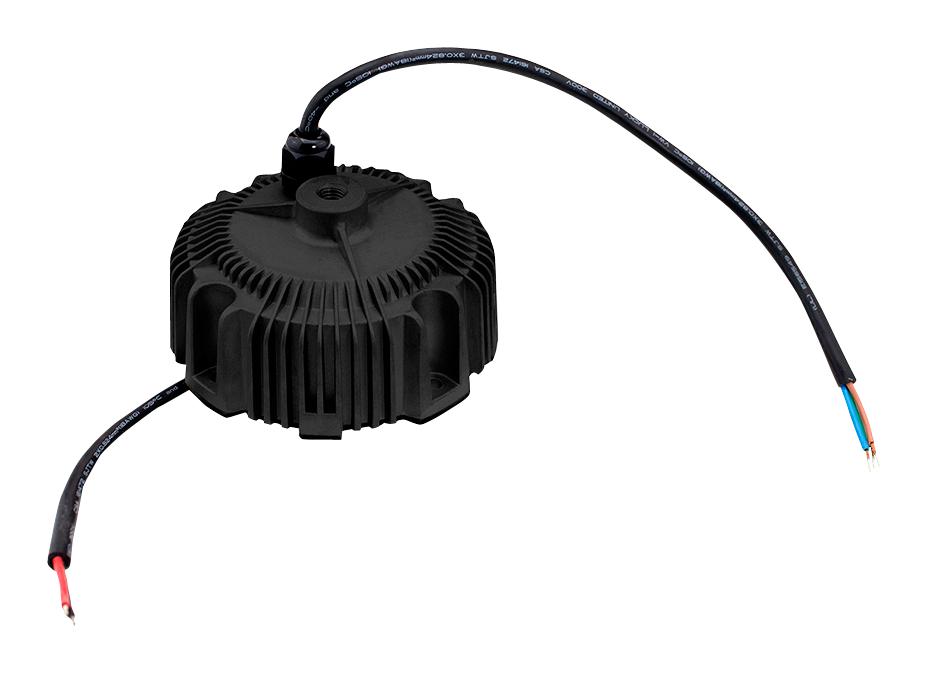

MEAN WELL HBG10048A High Power LED Driver
The HBG-100 series is a compact, high-efficiency 100W constant current LED driver designed for indoor and outdoor lighting applications. Operating from 90 to 305VAC, it delivers adjustable output voltages between 24V and 60V with a frequency range of 47 to 63Hz. Featuring an IP67/IP65 rating, active PFC, and a wide operating temperature of -40°C to +85°C, it supports various dimming options including 3-in-1, DALI, and potentiometer control. Its robust metal housing ensures durability and reliability for diverse environments, making it suitable for high bay, stage, spotlight, and hazardous location lighting systems with a typical lifetime exceeding 50,000 hours.
MEAN WELL HBG10048A High Power LED Driver Specifications:
- Rated Power: 97.2W
- Rated Current: 4A (24V), 2A (36V), 1.6A (48V), 1A (60V)
- Output Voltage: 24V to 60V adjustable via potentiometer
- Constant Current Region: 14.4~24V, 21.6~36V, 28.8~48V, 36~60V
- Open Circuit Voltage (max): 25V (24V model), 37V (36V model)
- Efficiency: up to 91.5%
- Input Voltage: 90~305VAC, 127~434VDC
- Frequency Range: 47 ~ 63Hz
- Power Factor: >0.96 / 115VAC, >0.96 / 230VAC, >0.94 / 277VAC
- Total Harmonic Distortion: <20%
- Working Temperature: -40°C to +85°C
- Ingress Protection: IP67/IP65
- Dimensions: 130mm x 66.5mm (D x H), Weight: 1.18kg
Buy the MEAN WELL HBG-100 U–Reliable LED Driver for Industrial Applications
Enhance your LED lighting project with the MEAN WELL HBG-100 series LED driver. Designed for outdoor and indoor use, this 100W constant current driver features adjustable output voltages, high efficiency up to 91.5%, and diverse dimming options including 3-in-1 and DALI protocols. Its robust IP67/IP65 rated metal housing ensures exceptional durability in challenging environments. Operating within a broad input voltage range of 90 to 305VAC and an ambient temperature of -40°C to +85°C, it guarantees reliable performance with a lifetime exceeding 50,000 hours. Purchase online today for dependable, energy-efficient LED lighting solutions.
Get MEAN WELL HBG-100 today—built for precision and long-lasting durability in demanding LED lighting systems.
Frequently Asked Questions
Where can I buy MEAN WELL HBG10048A?
You can click on the BUY or RFQ button to purchase HBG10048A from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part HBG10048A?
You can download the HBG10048A datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of HBG10048A?
MEAN WELL
