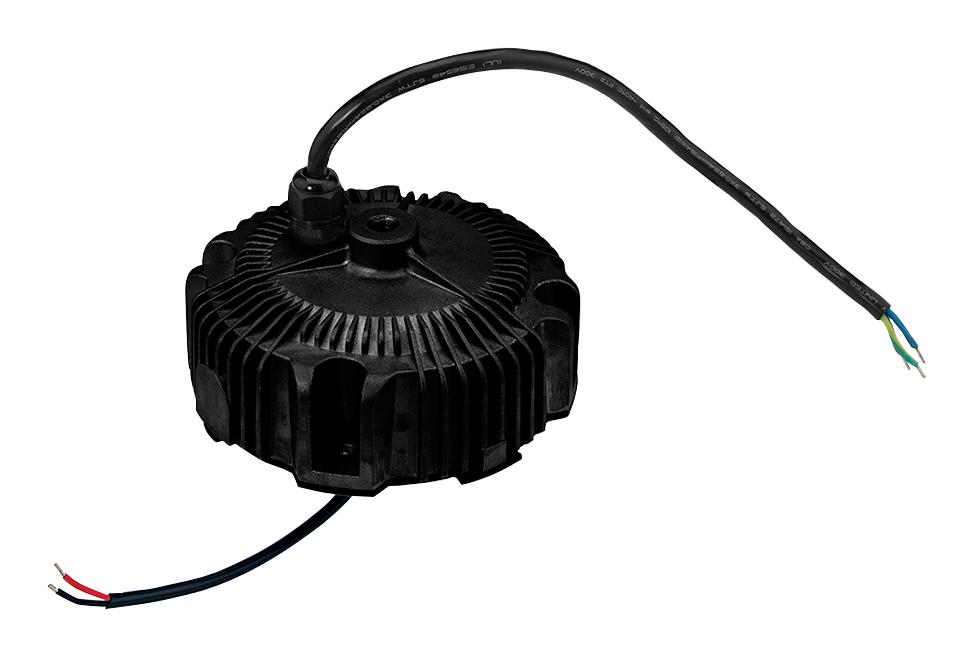

MEAN WELL HBG16060B LED Driver
The HBG-100 series is a 100W LED driver designed for versatile indoor and outdoor LED lighting applications, including bay, stage, and spotlighting. It features a circular metal housing with IP67/IP65 ingress protection, operating from 90~305VAC with high efficiency up to 91.5%. The driver supports constant current output with adjustable voltage between 24V and 60V, and offers multiple dimming options such as 1~10Vdc, PWM, resistance, and DALI. Reliable with a typical lifespan over 50,000 hours, it is suitable for harsh environments with operating temperatures from -40°C to +85°C and a 5-year warranty.
MEAN WELL HBG16060B LED Driver Specifications:
- Power: 100W
- Rated Current: 2A to 4A depending on model
- Rated Voltage: 24V, 36V, 48V, 60V
- Input Voltage: 90~305VAC
- Output Voltage: 24V to 60V adjustable
- Efficiency: Up to 91.5%
- Power Factor: >0.96
- THD: <20%
- Protection: Over Voltage, Over Temperature, Over Current
- Operating Temperature: -40°C to +85°C
- Ingress Protection: IP67/IP65
- Lifetime: >50,000 hours
- Dimensions: 130mm * 66.5mm (D * H)
- Certifications: UL, CE, CB, CCC (optional), ENEC, EAC, BIS, IP67/IP65 rated
Buy the Buy MEAN WELL 100W Constant Current LED Driver HBG-100 Series Part Number HBG16060B Online
Purchase the MEAN WELL HBG-100 series LED driver online today to ensure your lighting system operates with high efficiency, reliability, and flexibility. Featuring adjustable output voltage from 24V to 60V, multiple dimming options, and IP67/IP65 ratings, this 100W driver is suitable for indoor and outdoor applications including stage, bay, and spotlighting. Its long lifespan of over 50,000 hours, low THD, and robust protection features make it an ideal choice for professional lighting installations. Order now for durable, high-quality lighting performance.
Order your MEAN WELL SeriesHBG-100 16060B high-performance LED driver today and ensure your lighting projects benefit from dependable, long-lasting power.
