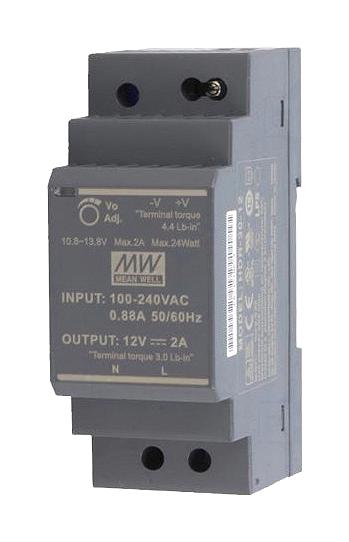

MEAN WELL HDR3024 DIN rail power supply
The HDR-30 series is a compact, ultra-slim 30W DIN rail power supply designed for industrial and home automation applications. Featuring universal input 85~264VAC, the series offers high efficiency up to 90%, with protections against short circuits, overloads, and over-voltage. It operates between -30°C and 70°C, with DIN rail TS-35/7.5 or 15 mounting. Conforming to safety standards like IEC62368-1 and UL508, this power supply is ideal for controlling household systems, building automation, and factory setups in a space-saving, plastic housing with LED indicators and adjustable DC output.
MEAN WELL HDR3024 DIN rail power supply Specifications:
- Input Voltage: 85~264VAC (277VAC operational)
- Output Voltages: 5V, 12V, 15V, 24V, 48V
- Rated Power: 15W to 36W depending on model
- Efficiency: Up to 90%
- Ripple & Noise: 80mVp-p to 240mVp-p
- Output Voltage Adjustment Range: 45~55V (5V model), 108~138V (12V model), 13.5~18V (15V model), 21.6~29V (24V model), 43.2~55.2V (48V model)
- Line Regulation: ±1.0%
- Load Regulation: ±1.0%
- Protections: Short circuit, Overload, Over voltage
- Operating Temperature: -30°C to 70°C
- Storage Temperature: -40°C to 85°C
- Humidity: 20% to 90% RH non-condensing
- Dimensions: 58.4mm x 90mm x 54.5mm
- Mounting: TS-35/7.5 or TS-35/15 rail
Buy the Mean Well HDR-30 Reliable Power Supply for Industrial Applications
Purchase the HDR-30 series DIN rail power supply online today and enjoy a dependable, space-efficient solution suitable for industrial automation, building control, and home systems. With high efficiency up to 90%, robust protections including short circuit, overload, and over-voltage safeguards, plus safety approvals like IEC62368-1 and UL508, this power supply ensures safe, reliable operation in temperatures from -30°C to 70°C. Its compact design fits TS-35/7.5 or 15 rails, making it ideal for modern control and automation needs.
Order your Mean Well HDR-30 series 30W DIN rail power supply today and ensure reliable, space-saving power for industrial and automation projects.
Frequently Asked Questions
Where can I buy MEAN WELL HDR3024?
You can click on the BUY or RFQ button to purchase HDR3024 from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part HDR3024?
You can download the HDR3024 datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of HDR3024?
MEAN WELL
