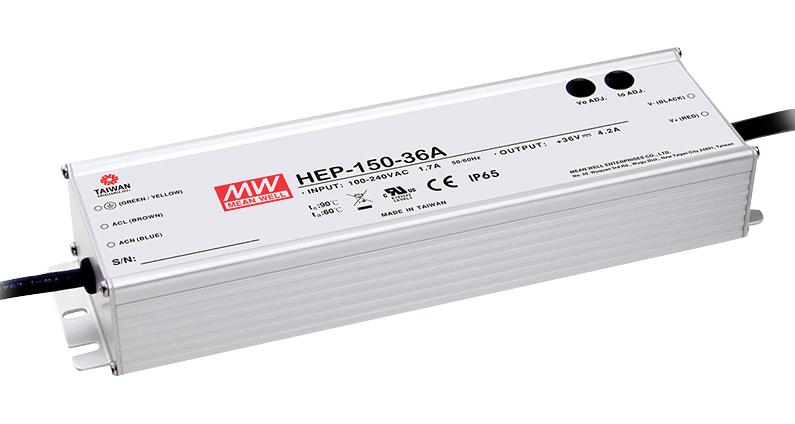

MEAN WELL HEP15054A industrial power supply
HEP-150 is a robust 150W industrial power supply designed for harsh environments, including humid, dusty, and high-vibration settings. Encased in aluminum and fully potted with heat-conducting silicone, it offers up to 94% efficiency and operates between -55°C and +70°C through free air convection. Its IP65 rating ensures water and dust resistance, with optional IP68 models available. The unit supports surge immunity up to 6KV, complies with relevant safety standards, and includes protections for short circuit, overload, overvoltage, and temperature. Ideal for outdoor telecom, signage, and petrochemical applications.
MEAN WELL HEP15054A industrial power supply Specifications:
- Power Output: 150W
- Input Voltage: 90 ~ 305VAC, 127 ~ 431VDC
- Output Voltage Options: 12V, 15V, 24V, 36V, 48V, 54V
- Rated Current: 12.54A (12V), 10A (15V), 6.3A (15V), 4.2A (24V), 3.2A (36V), 2.8A (48V), 2.8A (54V)
- Ripple & Noise: Max. 150-200mVp-p depending on model
- Voltage Adjusment Range: 10.8-13.5V (12V), 13.5-17V (15V), 22-27V (24V), 33-40V (36V), 43-53V (48V), 49-58V (54V)
- Efficiency: Up to 94%
- Operating Temperature: -55°C to +70°C
- Humidity: 20-95% RH non-condensing
- Vibration Resistance: 10G, 20~500Hz
- Ingress Protection: IP65 standard, optional IP68
- Surge Immunity: 6KV
- Protections: Short circuit, Overload, Overvoltage, Over temperature
- Dimensions: 228x68x38.8mm (L*W*H)
- Certifications: UL60950-1, IP65/IP68 approved
- Working Altitude: Up to 5000 meters
Buy the Buy Mean Well HEP Series 150W Power Supply Part Number HEP15054A Online
Enhance your outdoor electrical setups with the reliable Mean Well HEP-150 series power supply. With a robust 150W output, high efficiency of up to 94%, and an IP65 rating, this unit is ideal for telecom, signage, and petrochemical installations. Its wide temperature operation from -55°C to +70°C and surge immunity of 6KV ensure optimal performance in extreme conditions. Purchase online today to benefit from fast delivery, security, and trusted quality for demanding industrial applications.
Order your Mean Well HEP-150 series 150W power supply today and equip your outdoor projects with reliable, high-efficiency power solutions designed for harsh environments.
