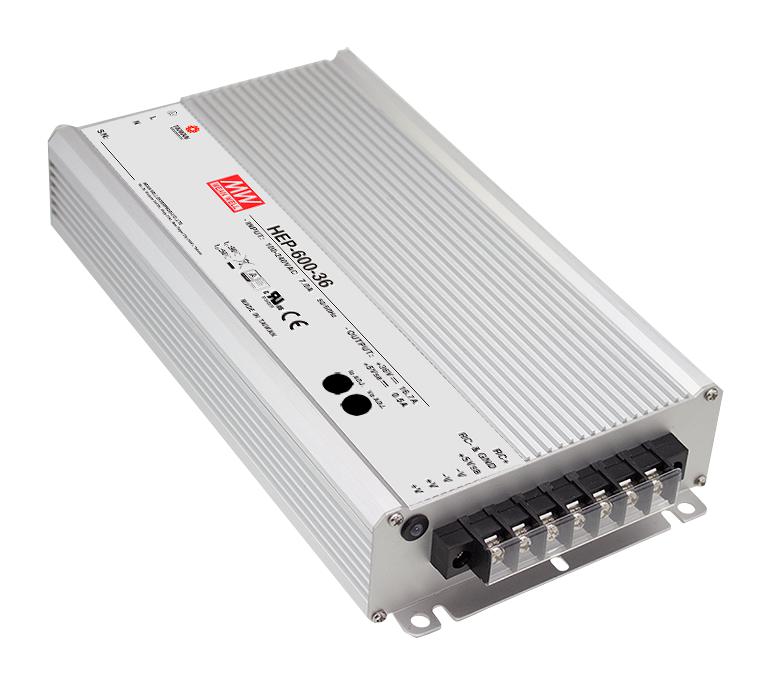

MEAN WELL HEP60054 Industrial Power Supply
The HEP-600 power supply is a robust 600W unit designed for harsh environments like outdoor telecommunication, signage, and mining facilities. Its aluminum casing, fully potted with heat-conducting silicone, allows operation from -40°C to +70°C with high efficiency up to 96%, ensuring reliable performance in dusty, oily, humid, and vibrating settings. Equipped with active PFC, multiple protections, adjustable output, and a lifespan of 6 years, it is ideal for industrial applications demanding durability and consistent power supply in challenging conditions.
MEAN WELL HEP60054 Industrial Power Supply Specifications:
- Input Voltage Range: 90 ~ 305VAC, 127 ~ 431VDC
- Output Voltage Options: 12V, 15V, 20V, 24V, 30V, 36V, 42V, 48V, 54V
- Rated Power: 480W to 604.8W depending on model
- Rated Current: 40A at 12V, 36A at 15V, 28A at 20V, 25A at 24V, 20A at 30V, 16.7A at 36V, 14.34A at 42V, 12.5A at 48V, 11.24A at 54V
- Ripple & Noise: Max 150mVp-p to 350mVp-p depending on model
- Efficiency: Up to 96%
- Operating Temperature Range: -40°C to +70°C
- Vibration Resistance: 10G test
- Protections: Short circuit, over current, over voltage, over temperature
- Built-in active PFC, fanless convection cooling, shock resistance of 10G
- Dimensions: 280 x 144 x 48.5 mm, Aluminum case with heat conduction silicone
- Compliance: UL60950-1, TUV EN60950-1, EN55022 Class B, EN61000-3-2,-3
- MTBF: 76.9K hours (MIL-HDBK-217F, 25°C)
Buy the Mean Well Series HEP 600W: HEP60054
Purchase the Mean Well HEP60054 power supply online today for dependable, high-efficiency power delivery in harsh industrial environments. Designed with an aluminum casing, fully potted with heat-conducting silicone, this 600W unit operates efficiently from -40°C to +70°C. It features active PFC, multiple protections, and adjustable output, making it ideal for outdoor telecom, signage, and mining applications. With a 6-year warranty and vibration resistance, this power supply guarantees durability and consistent performance in demanding conditions—order now for reliable power in your critical systems.
Get Mean Well HEP60054 today—built for reliable performance and long-lasting durability in industrial environments.
Frequently Asked Questions
Where can I buy MEAN WELL HEP60054?
You can click on the BUY or RFQ button to purchase HEP60054 from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part HEP60054?
You can download the HEP60054 datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of HEP60054?
MEAN WELL
