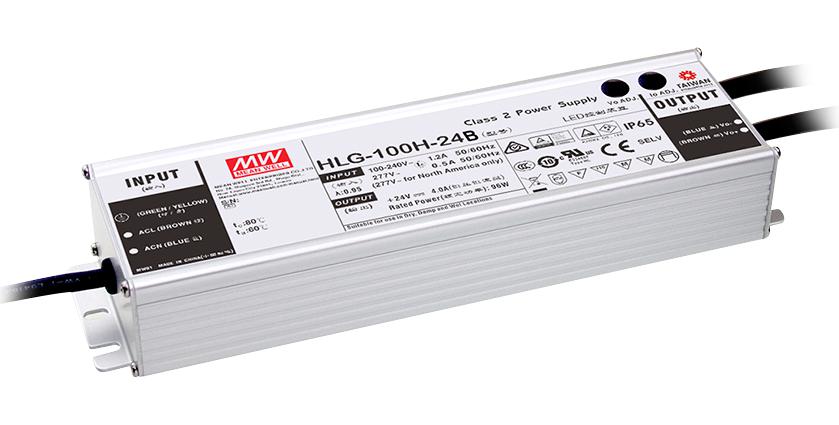

MEAN WELL HLG100H48B LED Driver
The HLG-100H series is a high-efficiency 100W AC/DC LED driver with dual-mode constant voltage and constant current output. Designed for indoor and outdoor use, it features IP67/IP65 ratings, active PFC, and a metal housing. Operating from 90 to 305VAC, models range between 20V and 54V rated voltage. With a lifespan over 62,000 hours, adjustable output options, and optional dimming functionalities, this driver provides reliable, long-lasting performance for LED street, high-bay, greenhouse, and parking lighting applications in harsh environments.
MEAN WELL HLG100H48B LED Driver Specifications:
- Rated Power: 96W to 96W (varies by model)
- Input Voltage: 90~305VAC
- Output Voltage: 20V to 54V (adjustable for some models)
- Constant Current Region: 10~20V to 27~54V depending on model
- Rated Current: 4.88A, 4A, 3.24A, 2.65A, 2.28A, 2A, 1.77A
- Ripple & Noise: Max 200mVp-p
- Efficiency: Up to 93%
- Protection: Over Voltage, Over Temperature, Short Circuit, Over Current
- Environmental Rating: IP67/IP65 for indoor/outdoor
- Operating Temperature: -40°C to +80°C
- Lifetime: >62,000 hours
- Dimensions: 220mm x 68mm x 38.8mm
- Humidity: 20~95% RH non-condensing
- Certification: UL8750, CSA, EN/AS/NZS 61347-1, 61347-2-13
- Vibration: 10~500Hz, 5G
- MTBF: 492.2K hours
Buy the Buy Mean Well HLG-100H Series Part Number HLG100H48B Online
Purchase the Mean Well HLG-100H series LED driver online today for reliable power delivery in LED street, high-bay, greenhouse, and parking lighting systems. This high-efficiency 100W driver features dual-mode constant voltage and current outputs, adjustable Voltage and dimming options, IP67/IP65 ratings for harsh environments, and a lifespan exceeding 62,000 hours. Its fanless design ensures silent operation, and excellent protection features guarantee safety and dependability, making it the ideal choice for professional outdoor and indoor LED lighting installations.
Get Mean Well HLG-100H 100W LED driver today—designed for robust outdoor lighting with IP67/IP65 ratings and long-lasting durability.
Frequently Asked Questions
Where can I buy MEAN WELL HLG100H48B?
You can click on the BUY or RFQ button to purchase HLG100H48B from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part HLG100H48B?
You can download the HLG100H48B datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of HLG100H48B?
MEAN WELL
