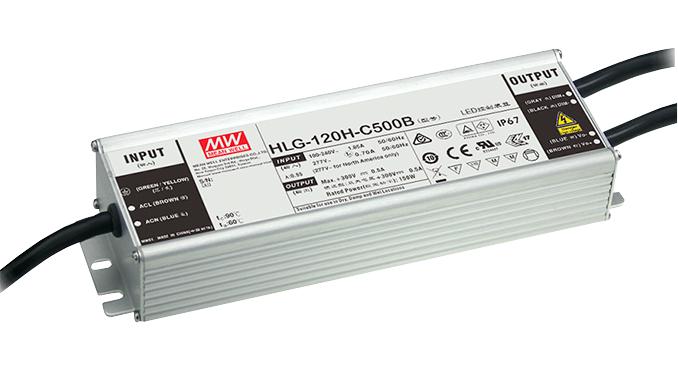

MEAN WELL HLG120H24B LED Driver
The HLG-120H series is a 120W AC/DC LED driver designed for indoor and outdoor lighting applications including street, high-bay, parking, greenhouse, and fishing lamps. It features dual mode constant voltage and constant current output, with models supporting voltages from 12V to 54V. Operating from 90 to 305VAC, it offers high efficiency up to 93.5%, fanless operation, and robust IP67/IP65 protection for harsh environments. Equipped with dimming options, active PFC, and a lifespan exceeding 62,000 hours, this driver combines durability with flexible installation features suitable for hazardous locations, with a 7-year warranty.
MEAN WELL HLG120H24B LED Driver Specifications:
- Input Voltage: 90-305VAC, 47-63Hz
- Output Power: 120W
- Output Voltage: 12V to 54V models available
- Rated Current: 10A, 6A, 5A, 4A, 3.44A, 2.5A, 2.3A depending on model
- Ripple & Noise: Max. 200mVp-p
- Efficiency: Up to 93.5%
- Protection: Over current, over voltage, short circuit, over temperature with auto recovery
- Ingress Protection: IP67/IP65 depending on model
- Operating Temperature: -40°C to +80°C
- Maximum Case Temperature: +80°C
- Lifetime: >62,000 hours under typical conditions
- Dimensions: 220mm x 68mm x 38.8mm
- Vibration Resistance: 5G at 40-500Hz
- Certifications: UL, CSA, EN standards, CB, EAC, KC
- Weight: Approximately 4.12kg
- Supported Dimming: 3-in-1 (1-10VDC, PWM, Resistance), Timer dimming options
- Built-in active PFC, fanless design, suitable for hazardous (Class I Division 2) locations
Buy the MEAN WELL Series HLG120H LED Driver Reliable Power Supply for Outdoor and Indoor Lighting
Enhance your lighting system with the MEAN WELL HLG120H LED driver, featuring dual mode constant voltage and current output, high efficiency up to 93.5%, robust IP67/IP65 ratings for indoor and outdoor use, and a lifespan exceeding 62,000 hours. Its flexible dimming options include 3-in-1 functionality, timer dimming, and adjustable output voltage, making it ideal for street, high bay, parking, and greenhouse lighting. Trust in the durability, safety, and long-term performance of this proven industrial component. Purchase online now for seamless installation and reliable operation.
Buy MEAN WELL HLG120H now and experience unmatched reliability and performance in demanding industrial lighting systems.
Frequently Asked Questions
Where can I buy MEAN WELL HLG120H24B?
You can click on the BUY or RFQ button to purchase HLG120H24B from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part HLG120H24B?
You can download the HLG120H24B datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of HLG120H24B?
MEAN WELL
