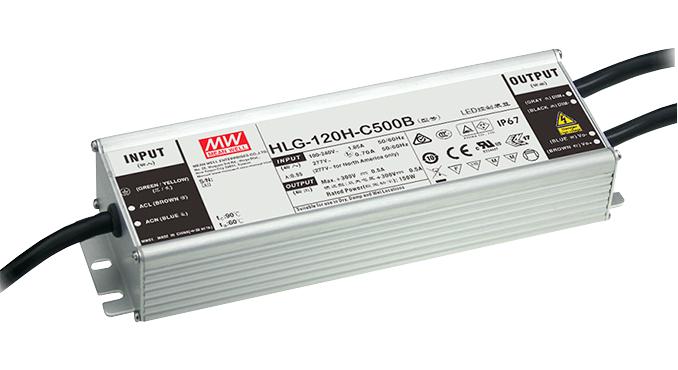

MEAN WELL HLG120H36B High Power LED Driver
The HLG-120H series is a high-efficiency 120W LED driver providing dual-mode constant voltage and constant current outputs. Operating from 90 to 305VAC, it adapts for indoor and outdoor uses with an IP67/IP65 rating and a metal housing, suitable for street, high-bay, parking, greenhouse, and fishing lighting. Features include built-in active PFC, various dimming options, adjustable output via potentiometer, and a lifetime exceeding 62,000 hours. Designed for reliable performance in temperatures from -40°C to +80°C, it ensures safety and efficiency for diverse LED lighting applications.
MEAN WELL HLG120H36B High Power LED Driver Specifications:
- Input Voltage: 90-305VAC, 47-63Hz
- Output Power: 120W
- Output Voltage Range: 12V to 54V (model dependent)
- Rated Current: 10A (12V), 6A (15V), 5A (20V), 4A (24V), 3.44A (30V), 2.9A (36V), 2.5A (42V), 2.3A (48V), 2.4A (54V)
- Ripple & Noise: Max. 200mVp-p
- Efficiency: Up to 93.5%
- Protection: Over current, over voltage, over temperature, short circuit, auto recovery
- Operating Temperature: -40°C to +80°C
- Ingress Protection: IP67/IP65 rated
- Dimensions: 220 x 68 x 38.8 mm
- Weight: 4.12 kg
- Lifetime: >62,000 hours
- Certifications: UL, CSA, EN/AS/NZS 61347-1, 2-13, BIS, EAC, KC, EN60950-1
- Vibration Resistance: 5G, 40-500Hz for 72 minutes
- Dimming Options: 1-10VDC, 10V PWM, resistance, timer (on request)
Buy the MEAN WELL Series H120H 120W LED Driver: HLG120H36B
Purchase the MEAN WELL HLG-120H series LED driver online today for reliable, high-efficiency power solutions. With advanced dimming options, IP67/IP65 ratings, and a lifetime of over 62,000 hours, it’s perfect for outdoor and indoor LED applications including street, flood, high-bay, and greenhouse lighting. Designed for temperatures from -40°C to +80°C, this driver ensures stable performance and safety. Buy now and enhance your LED setups with dependable, long-lasting power supply solutions engineered for excellence.
Order your MEAN WELL Series HLG120H36B today and give your LED lighting projects the dependable quality they deserve.
