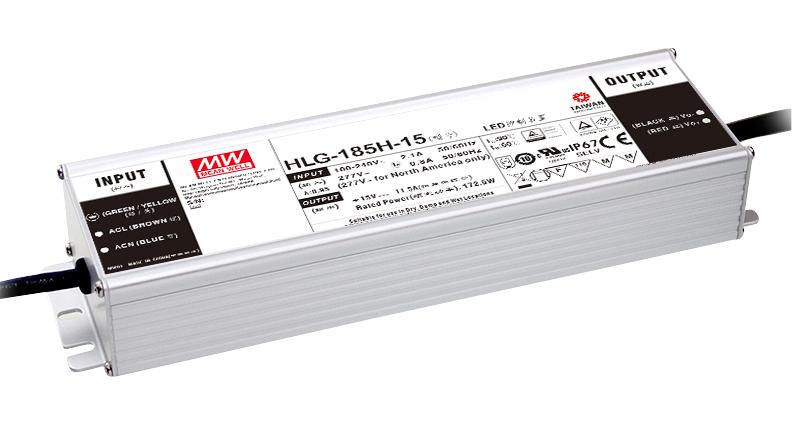

MEAN WELL HLG185H24 High Power LED Driver
The HLG-185H series encompasses 185W AC/DC LED drivers designed to provide reliable dual mode constant voltage and constant current output. Operating from 90~305VAC, models feature voltage ratings from 12V to 54V with efficiencies up to 94%. Their robust metal housing and IP67/IP65 ratings ensure suitability for indoor and outdoor use, including street lighting, high-bay, parking, greenhouse, and fishing lamps. Equipped with adjustable functions such as dimming via potentiometer, 3-in-1 dimming (1~10VDC, PWM, resistance), and timer options, they guarantee long-lasting performance with a typical lifetime exceeding 62,000 hours and a 7-year warranty.
MEAN WELL HLG185H24 High Power LED Driver Specifications:
- Power: 185W
- Input voltage: 90~305VAC, 47~63Hz
- Output voltage: 12V to 54V (model dependent)
- Rated current: 13A at 12V, 11.54A at 15V, down to 1.72A at 54V
- Efficiency: up to 94%
- Ripple & noise: max 200mVp-p
- Protection: Over current, over voltage, over temperature
- Dimming: 1~10VDC, PWM (10V), resistance, timer, and switch options
- Ingress protection: IP67/IP65 (model dependent)
- Operating temperature: -40°C to +90°C
- Lifetime: >62,000 hours
- Mechanical size: 228 mm x 68 mm x 38.8 mm
- Certifications: UL, CSA, EN/ASINZS 61347-1 & 2-13, CE, EAC
- Working humidity: 20-95% RH non-condensing
- Storage temperature: -40°C to +80°C
Buy the Mean Well Series HLG185H24 High Power LED Driver: Robust 185W AC/DC Solution
Purchase the reliable and efficient 185W LED driver online today. Designed for indoor and outdoor environments, it features dual mode operation, adjustable dimming, IP67/IP65 ratings, and long lifespan over 62,000 hours. Perfect for street, high-bay, parking, and greenhouse lighting, this high-quality driver guarantees excellent performance, safety, and compliance with international standards. Enhance your lighting systems by ordering online now and enjoy fast delivery and OEM support for your industrial or commercial projects.
Order your Mean Well SeriesH series 185W LED driver today and equip your projects with durable, high-performance LED lighting solutions.
Frequently Asked Questions
Where can I buy MEAN WELL HLG185H24?
You can click on the BUY or RFQ button to purchase HLG185H24 from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part HLG185H24?
You can download the HLG185H24 datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of HLG185H24?
MEAN WELL
