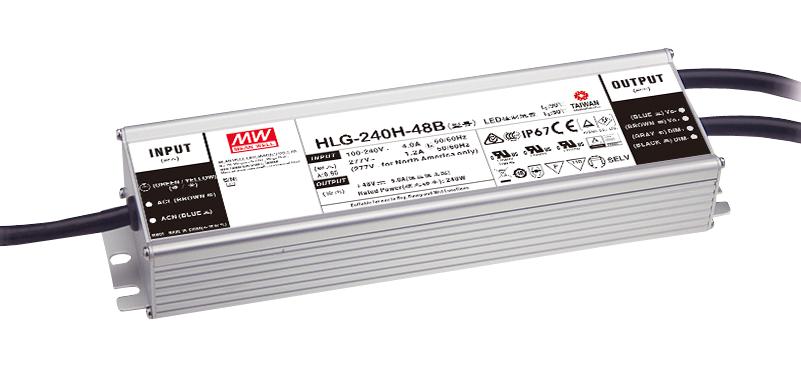

MEAN WELL HLG240H30B LED Driver
The HLG-240H series is a 240W LED driver combining constant voltage and constant current outputs, ideal for indoor and outdoor lighting such as street, high-bay, parking, fishing, and greenhouse lighting. It features high efficiency up to 93.5%, a fanless design, and operating temperature range from -40°C to +90°C. With ingress protection ratings IP67/IP65, multiple dimming options, and a robust metal housing, it offers excellent durability, safety compliance, and a long lifetime of over 62,000 hours, suitable for hazardous locations with Type HL configurations.
MEAN WELL HLG240H30B LED Driver Specifications:
- Rated Power: 240W
- Input Voltage: 90 ~ 305VAC
- Output Voltage: 12V to 54V (models vary)
- Rated Current: 16A to 4.45A depending on model
- Efficiency: Up to 93.5%
- Ripple & Noise: Max. 350mVp-p
- Protection: Over current, over voltage, short circuit, over temperature
- Dimming: 1~10VDC, 10V PWM, resistance, timer (optional)
- Ingress Protection: IP67/IP65
- Operating Temperature: -40°C to +90°C
- Case Dimensions: Approx. 244.2mm x 68mm x 38.8mm
- Lifetime: >62,000 hours
- Standards: UL, CSA, EN, IEC, BIS certifications
- Mounting: Metal housing with waterproof connectivity options
- Suitable for hazardous locations with Type HL configuration
Buy the MEAN WELL Series HL 240W LED Driver: HLG-240H30
Discover the high-performance MEAN WELL LED driver HLG-240H30, offering a 240W power output with dual mode constant voltage and current, IP67/IP65 rating, and high efficiency up to 93.5%. Designed for outdoor and indoor lighting, it features multiple dimming options, robust metal housing, and excellent thermal performance. With a lifetime exceeding 62,000 hours, this durable, reliable power supply is perfect for street lighting, high-bay, parking, and greenhouse applications. Buy online now to ensure your LED project benefits from top-tier quality and dependable operation.
Get MEAN WELL HLG-240H30 today—built for precision, outdoor durability, and long-lasting LED lighting solutions.
Frequently Asked Questions
Where can I buy MEAN WELL HLG240H30B?
You can click on the BUY or RFQ button to purchase HLG240H30B from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part HLG240H30B?
You can download the HLG240H30B datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of HLG240H30B?
MEAN WELL
