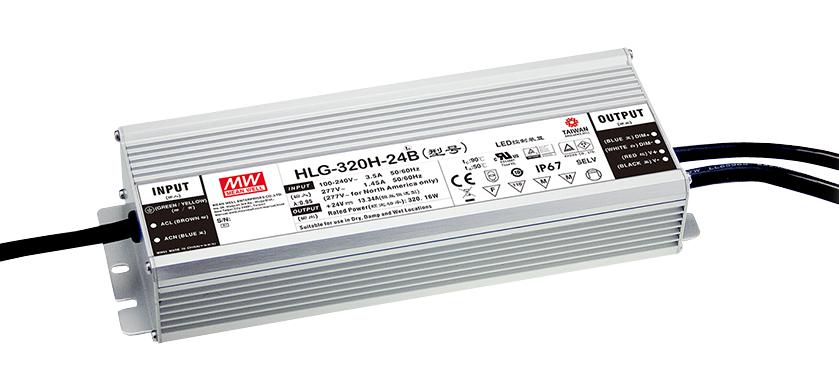

MEAN WELL HLG320H30B High Power LED Driver
The HLG-320H series is a high-efficiency 320W AC/DC LED driver with dual mode constant voltage and constant current outputs, suitable for indoor and outdoor LED lighting applications such as street, high-bay, greenhouse, and fishing lamps. Featuring IP67/IP65 ratings, operating from 90-305VAC, and offering adjustable or fixed output voltages between 12V and 54V, this quiet, fanless driver supports various dimming options, has a lifetime exceeding 62,000 hours, and is built with a durable metal housing for reliable performance in demanding environments.
MEAN WELL HLG320H30B High Power LED Driver Specifications:
- Rated Power: 320W
- Input Voltage: 90-305VAC
- Output Voltage: 12V to 54V (fixed or adjustable)
- Rated Current: 5.95A to 19A (depending on model)
- Ripple & Noise: Max 350mVp-p for 54V model
- Efficiency: Up to 94%
- Operating Temperature: -40°C to +90°C case temperature
- Ingress Protection: IP67/IP65 rated for indoor/outdoor use
- Dimming Options: 1~10VDC, PWM, resistance, with optional timer dimming
- Life Expectancy: Over 62,000 hours
- Protection: Short circuit, overload, over temperature, and HV protection
- Housing: Metal with robust design for environmental durability
- Certification: UL, CSA, EN, CE, and other standards compliance
- Dimensions: 252×90×43.8 mm
Buy the Buy MEAN WELL HLG-320H Part Number HLG320H30B Online
Purchase the MEAN WELL HLG-320H high power LED driver online for reliable, energy-efficient operation in various LED lighting applications. Designed with dual mode constant current and voltage outputs, this driver supports indoor and outdoor installations with IP67/IP65 ratings for harsh environments. It features adjustable output voltage from 12V to 54V, high efficiency up to 94%, and a robust metal housing for durability. With a lifespan exceeding 62,000 hours, built-in protections, and multiple dimming options, it ensures long-lasting, safe performance for street lighting, high-bay, greenhouse, and other LED systems. Compatible with various dimming methods including 1-10V, PWM, resistance, and optional timer dimming, making it highly flexible for your lighting needs. Purchase online today and enjoy fast, secure delivery for your project.
Get MEAN WELL HLG-320H today—built for high efficiency, durability, and versatile LED lighting system integration.
Frequently Asked Questions
Where can I buy MEAN WELL HLG320H30B?
You can click on the BUY or RFQ button to purchase HLG320H30B from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part HLG320H30B?
You can download the HLG320H30B datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of HLG320H30B?
MEAN WELL
