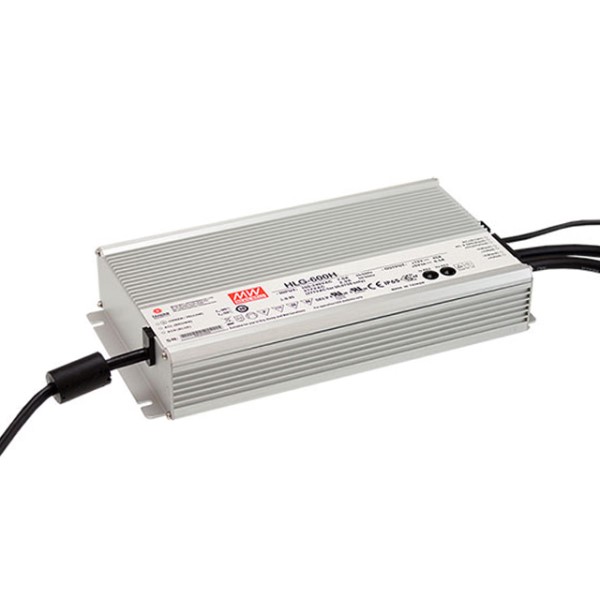

MEAN WELL HLG600H54B 600W LED Driver
The MEAN WELL HLG-600H series is a 600W AC/DC LED driver designed for constant voltage and constant current output. It operates from 90～305VAC and offers models with different rated voltages. With high efficiency (up to 96%) and a fanless design, it can operate within a wide temperature range (-40℃ ~ +90℃). The metal housing and IP67/IP65 ingress protection make it suitable for both indoor and outdoor applications. It's ideal for LED high-bay lighting, parking space lighting, LED fishing lamps, and greenhouse lighting, and is compliant with various safety and EMC standards.
MEAN WELL HLG600H54B 600W LED Driver Specifications:
- wattage: 600W
- input_voltage: 90～305VAC
- output_voltage: 54V
- rated_current: 10 ~ 20A
- efficiency: 95%
- ip_rating: IP67/IP65
- dimming_options: 3 in 1 dimming (0~10VDC, 10V PWM signal, resistance)
- standby_power: <0.5W
- lifetime: > 62000 hours
- warranty: 5 years
- operating_temperature: -40 ~ +90℃
- rohs_compliant: Yes
- safety_standards: UL60950-1, UL8750, CSA C22.2 No. 250.13-12, ENEC EN61347-1, EN61347-2-13, CCC GB4943.1, EAC TP TC 004
- dimension: 280*144*48.5mm
Buy the HLG-600H-54B MEAN WELL 600W LED Driver | myMectronic
Purchase the MEAN WELL HLG-600H-54B LED Driver securely and reliably online.
Buy Now
Frequently Asked Questions
Where can I buy MEAN WELL HLG600H54B?
You can click on the BUY or RFQ button to purchase HLG600H54B from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part HLG600H54B?
You can download the HLG600H54B datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of HLG600H54B?
MEAN WELL
