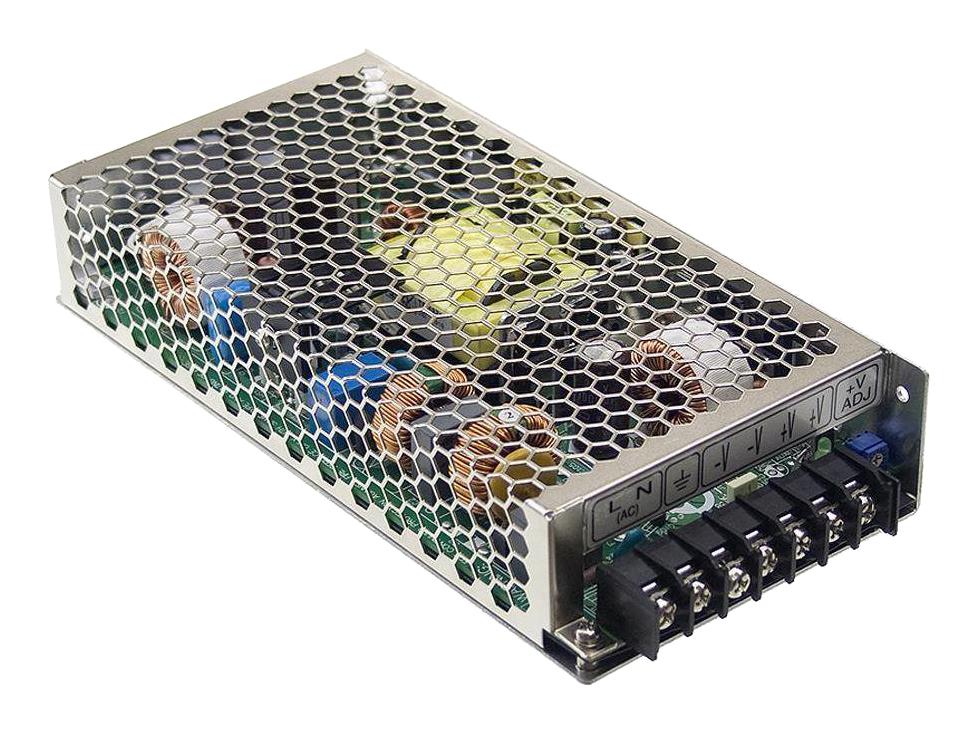

MEAN WELL HRP2005 Power Supply
The HRP-200 series offers a compact, reliable 200W power supply with active Power Factor Correction, high efficiency up to 89%, and universal AC input. It features protections for short circuit, overload, over voltage, and temperature, with cooling by free air convection. The low profile design (38mm) suits space-constrained applications and includes remote sense functionality. Designed for industrial automation, control systems, and embedded applications, it ensures stable output with tight regulation, rugged construction, and 5-year warranty, making it ideal for demanding environments requiring high performance and durability.
MEAN WELL HRP2005 Power Supply Specifications:
- Power: 200W with active PFC, PF>0.95
- Input Voltage: 85~264VAC / 120~370VDC, 47~63Hz
- Output Voltage: 3.3V, 5V, 7.5V, 12V, 15V, 24V, 36V, 48V with respective currents up to 40A
- Efficiency: Up to 89%, typical 80-89%
- Ripple & Noise: Max 150mVp-p depending on model
- Protection: Short circuit, overload (105-135%), over voltage, over temperature
- Dimensions: 199*98*38mm (L*W*H)
- Operating Temp.: -40°C to +70°C, derating applies above certain altitudes
- Humidity: 20-90% RH non-condensing
- Standards: UL62368-1, EN62368-1, TUV, CISPR32 Class B EMC
- MTBF: 209,400 hours (min.)
- Cooling: Free air convection
Buy the Buy Manufacturing Parts Power Supplies Series HRP-200 Series Part Number HRP2005 Online
Purchase the HRP-200 series power supply online today for high-performance, reliable power in industrial, automation, or control systems. With active PFC, efficiency up to 89%, and comprehensive protections, it ensures stable operation in challenging conditions. Easy to install with compact dimensions of 199mm x 98mm x 38mm, this power supply features universal input voltage, remote sense, and a robust design, backed by a 5-year warranty. Simplify your equipment upgrades by ordering online and enjoy prompt delivery and technical support.
Get HRP2005 today—built for industrial control, reliable power delivery, and extended durability in demanding environments.
Frequently Asked Questions
Where can I buy MEAN WELL HRP2005?
You can click on the BUY or RFQ button to purchase HRP2005 from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part HRP2005?
You can download the HRP2005 datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of HRP2005?
MEAN WELL
