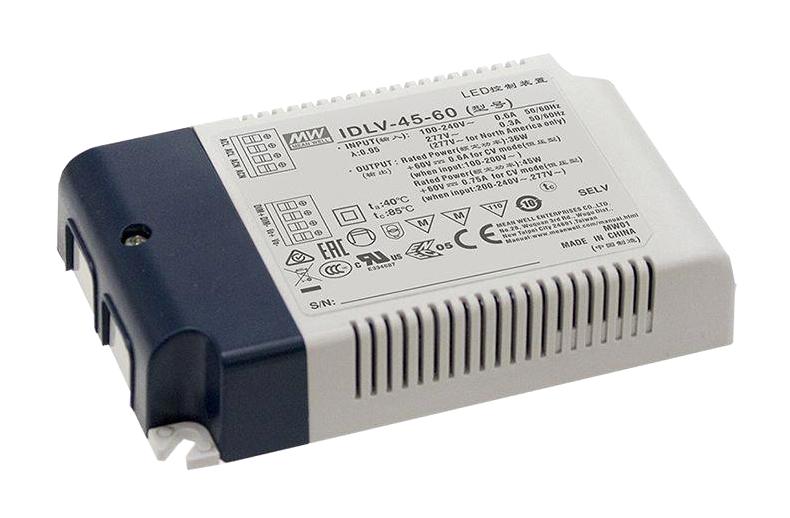

MEAN WELL IDLV4524 LED Driver
The IDLV-45 series is a 45W LED driver designed for indoor LED lighting, decorative, architecture, and signage applications. It features a constant voltage PWM output at 1kHz, operates from 90-295VAC, with models ranging from 12V to 60V. Its high efficiency of up to 90% and fanless design ensure reliable performance across temperatures from -20°C to +85°C. Equipped with optional dimming methods, including 2-in-1 dimming (0-10VDC and PWM) and auxiliary DC output, it offers flexibility and durability for various LED systems.
MEAN WELL IDLV4524 LED Driver Specifications:
- Input Voltage: 99~295VAC, 127~417VDC
- Rated Output Voltage: 12V, 24V, 36V, 48V, 60V
- Rated Current: 3.0A, 1.88A, 1.254A, 0.944A, 0.754A
- Rated Power: 36W, 45.12W, 45W, 45.12W, 45W
- Dimming Range: 0~100%
- PWM Frequency: 4kHz (#20%)
- Efficiency: up to 90%
- Power Consumption (No Load): <0.5W (Blank-Type), <1.2W (A-Type)
- Dimensions: 120 x 75 x 25 mm
- Operating Temperature: -20°C to +85°C
- Protection: Over Current, Short Circuit, Over Temperature
- Certification: CE, UL, EMC compliance
- Protection: 105~115% overload, automatic recovery
- Surge Protection: EN61000-4-5 (Line-Line 1kV)
- Isolation Resistance: 100 MΩ at 500VDC
Buy the Mean Well IDLV-45 U–Reliable LED Driver for Indoor Lighting
Experience the reliability and efficiency of the LED Driver from the IDLV-45 series. Designed for indoor LED lighting and decorative applications, it delivers 45W constant voltage PWM output with high efficiency up to 90%. Featuring a wide input voltage range from 99V to 295VAC, it offers flexible dimming options including 0-10VDC and PWM signals, with an auxiliary DC output available. Its robust design withstands temperatures from -20°C to +85°C, ensuring durability and performance in diverse environments. Perfect for architectural, signage, and decorative lighting projects, it offers peace of mind with safety protections and certified compliance. Order online now for fast, reliable delivery.
Get Mean Well IDLV-45 today—built for precision, high efficiency, and long-lasting durability in LED lighting systems.
