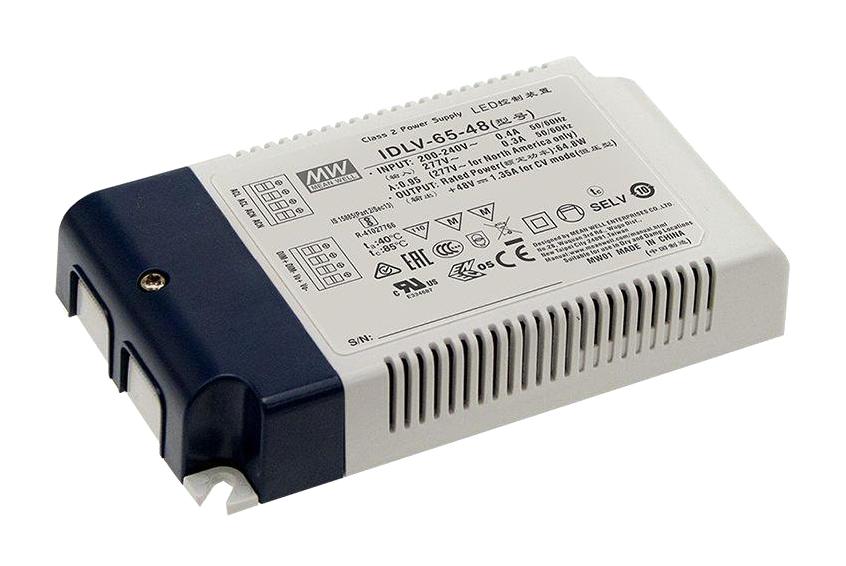

MEAN WELL IDLV6536 LED Driver
The IDLV-65 series is a 65W LED driver designed for indoor LED lighting and decorative applications. It features constant voltage PWM output at 1KHz, with models ranging from 12V to 60V. With high efficiency up to 90%, it operates in ambient temperatures from -20°C to +85°C without a fan. The driver includes 2-in-1 dimming options, auxiliary DC output, and built-in active PFC. It is compact, reliable, and suitable for various LED architecture lighting projects requiring adjustable brightness and long-term performance.
MEAN WELL IDLV6536 LED Driver Specifications:
- Rated Power: 50.4W to 64.8W depending on model
- Input Voltage: 180~295VAC
- Output Voltage: 12V, 24V, 36V, 48V, 60V
- Rated Current: 4.2A (12V), 2.4A (24V), 1.8A (36V), 1.35A (48V), 1.084A (60V)
- Efficiency: up to 90%
- PWM Frequency: 1KHz (+20%)
- Dimming Range: 0~100%
- Dimensions: 130*75*25mm (L*W*H)
- Operating Temperature: -20°C to +85°C
- Power Factor: ≥0.95
- Leakage Current: <0.75mA at 277VAC
- No Load Power Consumption: <0.5W (Blank-Type)
- Protection: Over Current (105~115%), short circuit shutdown
- Certifications: UL, EN55015, EN61000-3-2,3-3, EN61547
- MTBF: 398.7K hours minimum
Buy the Meanwell Series DLV-65 LED Driver: IDLV-6536
Discover the reliable and efficient LED driver designed for indoor decorative and architecture lighting. The DLV-65 series offers adjustable PWM dimming, high efficiency up to 90%, and operation from 180V to 295VAC. Its compact size, robust protection features, and wide temperature range make it ideal for a variety of LED lighting projects. Whether for commercial or residential use, this driver ensures consistent brightness, energy savings, and long-term durability. Purchase online now to enhance your lighting setup with confidence and advanced control options.
Order your Meanwell Series DLV-65 IDLV-6536 LED driver today and give your indoor lighting projects the dependable performance they deserve.
Frequently Asked Questions
Where can I buy MEAN WELL IDLV6536?
You can click on the BUY or RFQ button to purchase IDLV6536 from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part IDLV6536?
You can download the IDLV6536 datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of IDLV6536?
MEAN WELL
