MEAN WELL IDLV6560 LED Driver
The IDLV-65 series is a 65W AC/DC LED driver with constant voltage PWM output, suitable for indoor LED lighting and decorative applications. Operating from 180 to 295VAC, it offers various rated voltages from 12V to 60V with high efficiency up to 90%, ensuring reliable performance in temperature ranges from -20°C to +85°C. Features include 2 in 1 dimming (0-10VDC and PWM), auxiliary DC output, built-in active PFC, and no-load power consumption below 0.5W. Its plastic, class II housing and fanless design provide durability and safety, making it ideal for LED architecture lighting and decorative installations.
MEAN WELL IDLV6560 LED Driver Specifications:
- Power: 65W
- Input Voltage: 180~295VAC
- Rated Output Voltage: 12V, 24V, 36V, 48V, 60V
- Rated Current: 4.2A at 12V, 2.4A at 24V, 1.8A at 36V, 1.35A at 48V, 1.084A at 60V
- Efficiency: up to 90%
- Dimming Range: 0~100%
- PWM Frequency: Typ 4kHz (+20%)
- Total Harmonic Distortion: <20%
- Power Factor: Typ 0.95 at full load
- Operating Temperature: -20°C to +85°C
- Protection: Over current (105-115%), short circuit shutdown, auto-recovery
- Dimensions: 130*75*25 mm
- Housing: Plastic, class II design
- No Load Power Consumption: <0.5W (Blank-Type)
- Certifications: EMC compliance, safety with withstand voltage 3.75KVAC
- MTBF: Min. 398,700 hours

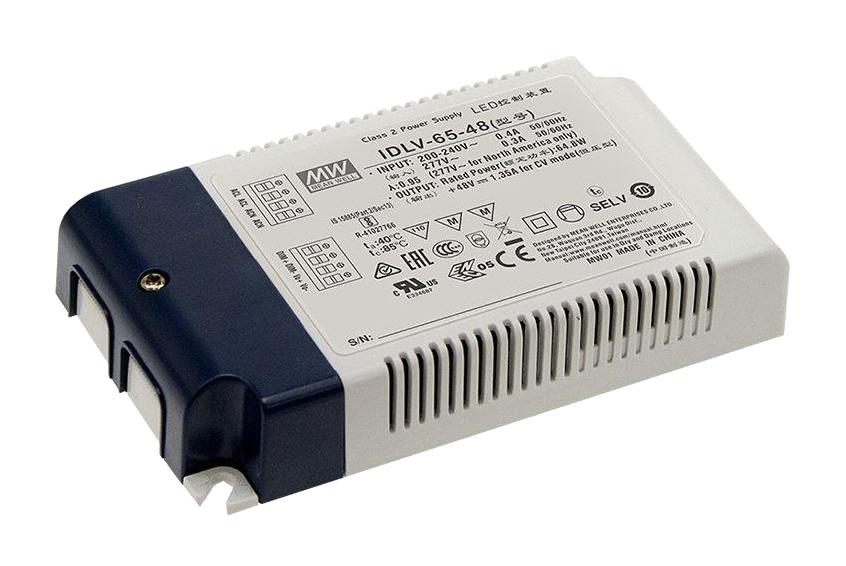

Buy the Buy Mean Well D LV- 65 series Part Number IDLV6560 Online
Enhance your LED lighting system with the D LV- 65 series from Mean Well, a 65W LED driver offering high efficiency up to 90%, PWM and 2-in-1 dimming options, and a robust plastic housing. Operating from 180 to 295VAC, it provides stable output voltages from 12V to 60V, supporting indoor LED, decorative, and architectural lighting applications. With built-in active PFC, no-load consumption under 0.5W, and a wide temperature range from -20°C to +85°C, it ensures reliable and efficient performance in diverse environments. Easy installation and compliance with safety standards make it an ideal choice for professional lighting setups.
Buy Mean Well D LV- 65 series IDLV6560 now and experience unmatched reliability and high-performance LED power solutions.
Frequently Asked Questions
Where can I buy MEAN WELL IDLV6560?
You can click on the BUY or RFQ button to purchase IDLV6560 from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part IDLV6560?
You can download the IDLV6560 datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of IDLV6560?
MEAN WELL
