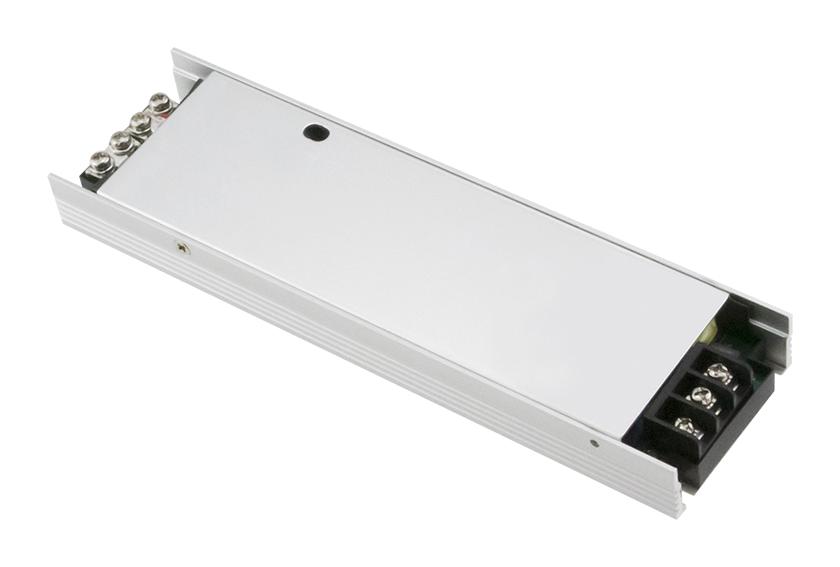

MEAN WELL LSP160R42T industrial power supply
The LSP-160 series is a compact 160W power supply with a slim profile of 20mm height, offering high efficiency up to 93.5% and a wide operating temperature range from -30°C to 70°C. Designed for industrial automation and control systems, it features full voltage range compatibility (100-264VAC), complete protections including short circuit, overload, over voltage, and over temperature. It supports multiple output voltages, including 3.3V, 4.2V, 5V, 12V, 24V, 36V, and 48V, with built-in active signals, current sharing, and optional redundancy for high-demand applications. Built with fanless design, it ensures silent operation, suitable for harsh environments, and conforms to relevant safety standards such as UL62368 and TUV EN62368, making it an ideal power solution for industrial machinery, automation equipment, and electronic instrumentation.
MEAN WELL LSP160R42T industrial power supply Specifications:
- Dimensions: 194*55*20mm (L*W*H)
- Input Voltage Range: 100~264VAC
- Output Voltages: 3.3V, 4.2V, 5V, 12V, 24V, 36V, 48V
- Rated Power: 160W
- Efficiency: Up to 93.5%
- Ripple & Noise: Max. 300mVp-p
- Operating Temperature: -30°C to 70°C
- Protections: Short circuit, Overload, Over voltage, Over temperature
- Vibration Resistance: 10-500Hz, 5G
- Safety Standards: UL62368, TUV EN62368, GB4943
- Dimension: 194*55*20mm
- Working Humidity: 20-90% RH non-condensing
- Derating Altitude: Up to 5000 meters
- Power Factor: ≥0.94 at 230VAC
- MTBF: 699,540 hours min.
Buy the Mean Well 160W Slim Series – Reliable Power Supply for Industrial Applications
Enhance your industrial automation and control systems with the high-efficiency, compact, 160W power supply from the LSP-160 series. Featuring wide voltage compatibility, fanless design for silent operation, and comprehensive protections, this power supply ensures reliable performance in harsh environments. Easy to install onto aluminum plates for optimal thermal management, it suits a variety of industrial machinery, electronic instruments, and household applications. Trust in the proven safety compliance and long MTBF for continuous, worry-free operation. Buy online today for fast delivery and seamless integration into your project.
Order your Mean Well Series LSP-160 160W power supply today and give your industrial projects dependable, efficient power needed for high-performance operation.
Frequently Asked Questions
Where can I buy MEAN WELL LSP160R42T?
You can click on the BUY or RFQ button to purchase LSP160R42T from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part LSP160R42T?
You can download the LSP160R42T datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of LSP160R42T?
MEAN WELL
