MEAN WELL MDS20C12 Medical Grade DC-DC Converter
The MDS20 series is a 20W medical-grade isolated and regulated DC-DC converter in a compact 2x1-inch package, designed for medical applications. It features international standard pins, high efficiency up to 90%, and a wide operating temperature range from -40°C to +90°C. Compliant with IEC60601-1 2xMOPP safety standards, it provides high isolation voltage of 4KVAC, continuous short circuit protection, and various input/output options, making it ideal for medical systems like oxygen monitors, CT scanners, and medical carts. Its low leakage current enhances patient safety and device reliability.
MEAN WELL MDS20C12 Medical Grade DC-DC Converter Specifications:
- Rated Power: 20W
- Input Voltage Range: 9~18Vdc (A), 18~36Vdc (B), 36~75Vdc (C)
- Output Voltages: 5V, 12V, 15V, 24V
- Output Current: up to 1950mA depending on model
- Efficiency: up to 90%
- Isolation Voltage: 4KVAC (reinforced insulation)
- Operating Temperature: -40°C to +90°C
- Ripple & Noise: 60mVp-p
- Line Regulation: 0.5%
- Load Regulation: +0.5%
- Switching Frequency: 250kHz to 300kHz depending on model
- Protection: Short circuit, overload (110-180%), under voltage lockout
- Compliance: IEC60601-1 medical safety standard, 2xMOPP
- Dimensions: 50.8mm x 25.4mm x 12mm
- Case Material: UL94V-0 plastic
- Soldering Temp: 260°C max, 1-3 sec
- Vibration: 10-500Hz, 2G for 60 min per axis
- Humidity: 20-90% RH non-condensing

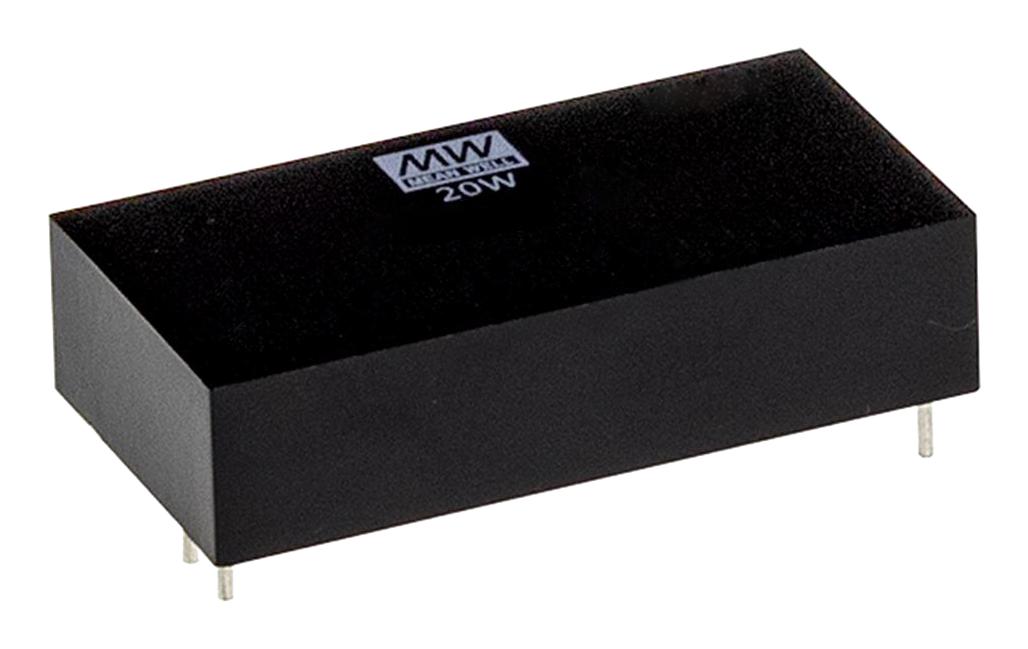

Buy the Buy Mean Well MDS20C12 Medical Grade DC-DC Converter Part Number MDS20C12 Online
Experience the reliability and safety of the MDS20 series medical-grade DC-DC converter from Mean Well. This 20W module features a compact 2x1-inch design, high efficiency up to 90%, and excellent thermal performance across an operating temperature range of -40°C to +90°C. Certified for IEC60601-1 safety standards with reinforced isolation of 4KVAC, it provides multiple input voltages and various output options, making it ideal for medical applications such as oxygen monitors, CT scanners, and portable medical carts. Easy to install, low leakage current, and durable, it ensures patient safety and equipment dependability.
Order your Mean Well MDS20C12 medical-grade 20W DC-DC converter today and ensure reliable power supply for your sensitive medical equipment.
Frequently Asked Questions
Where can I buy MEAN WELL MDS20C12?
You can click on the BUY or RFQ button to purchase MDS20C12 from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part MDS20C12?
You can download the MDS20C12 datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of MDS20C12?
MEAN WELL
