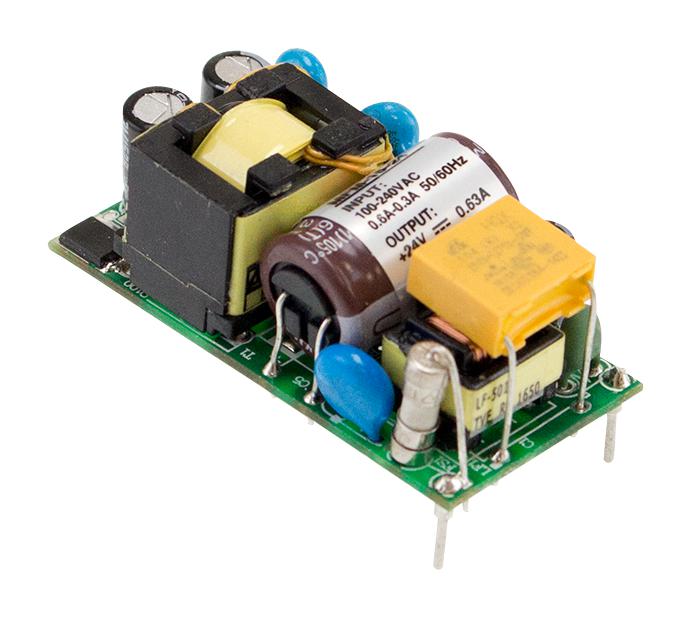

MEAN WELL MFM1515 Medical Power Supply
MFM-15 series is a compact, high-efficiency 15W medical power supply designed for medical device applications. It features ultra-low leakage current, dual insulation (2xMOPP), and comes with protections against short circuit, overload, overvoltage, and overtemperature. Operating efficiently from 80 to 264VAC, it supports BF applications with medical safety compliance (ANSI/AAMI ES60601-1 and IEC 60601-1). Its robust design includes excellent electromagnetic compatibility, low noise, and a broad temperature range from -35°C to +85°C, making it suitable for portable and stationary medical equipment requiring reliable power solutions.
MEAN WELL MFM1515 Medical Power Supply Specifications:
- Power Rating: 15W
- Input Voltage: 80 ~ 264VAC, 47 ~ 440Hz
- Output Voltage Options: 3.3V, 5V, 12V, 15V, 24V
- Rated Currents: 3.5A (3.3V), 3A (5V), 1.254A (12V), 1A (15V), 0.63A (24V)
- Efficiency: Up to 87%
- Leakage Current: <80μA at 264VAC
- Isolation: 4KVAC, double insulation (2x MOPP)
- Operating Temp Range: -35°C to +85°C, derating applies above 50°C
- Protection: Short circuit, overload, overvoltage, over temperature
- Dimensions: 49 x 23.8 x 23mm (L x W x H)
- Safety Standards: IEC/EN60601-1, ANSI/AAMI ES60601-1
- Shock and Vibration: 5G anti-vibration
- Humidity Range: 20-90% RH non-condensing
- MTBF: 4,210,000 hours
Buy the Mean Well MFM-15 – Reliable Medical Power Supply for Industrial Applications
Purchase the reliable medical-grade power supply online today. The MFM-15 series offers high efficiency, ultra-low leakage current, and comprehensive safety features suitable for portable and stationary medical equipment. Its compact size of 49 x 23.8 x 23mm ensures easy integration into various device designs. With certifications per IEC/EN60601-1 and ANSI/AAMI ES60601-1, it guarantees safety and performance. Order now for dependable power solutions that meet stringent medical standards, ensuring device safety, stability, and durability in demanding medical environments.
Get Mean Well MFM-15 today—built for medical precision and long-lasting durability in critical applications.
Frequently Asked Questions
Where can I buy MEAN WELL MFM1515?
You can click on the BUY or RFQ button to purchase MFM1515 from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part MFM1515?
You can download the MFM1515 datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of MFM1515?
MEAN WELL
