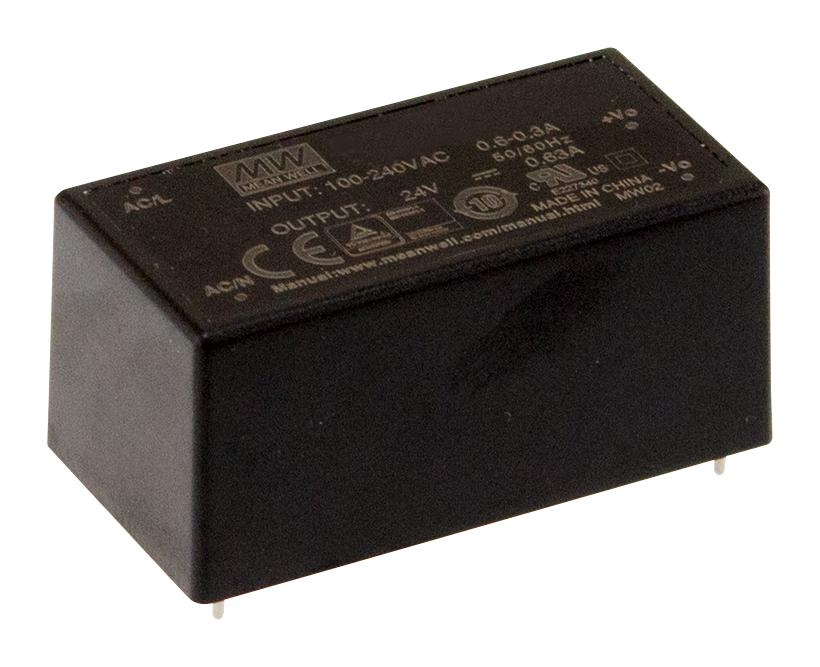

MEAN WELL MPM1524 Medical Power Supply Module
The MPM-15-24 is a compact, high-reliability medical power supply module capable of delivering 15W with high efficiency up to 87%. Featuring a small size of 52.4 x 27.2 x 24mm, it supports input voltages from 80 to 264VAC and is designed for medical applications with 2xMOPP isolation, ultra-low leakage current, and compliance with IEC/EN60601-1 standards. Its robust design includes protections against overload, overvoltage, temperature, and short circuits, making it suitable for patient-contact devices, medical monitors, and portable medical equipment, ensuring safety, stability, and long lifespan.
MEAN WELL MPM1524 Medical Power Supply Module Specifications:
- Output Voltage: 3.3V, 5V, 12V, 15V, 24V
- Rated Power: 11.6W, 16W, 15.1W depending on model
- Input Voltage: 80 ~ 264VAC, 47 ~ 440Hz
- Efficiency: Up to 87%
- Dimension: 52.4mm x 27.2mm x 24mm
- Leakage Current: <80A/264VAC
- Isolation: 2xMOPP, 4KVAC
- Working Temperature: -40°C to +85°C
- Protections: Overload, Overvoltage, Over temperature, Short circuit
- EMC Compliance: Class B for radiated and conducted emission
- Vibration Resistance: 2G, 10~500Hz
- Thermal Derating: Yes, based on input voltage and ambient temperature
- Warranty: 3 years
Buy the Meanwell 15W – Reliable Medical Power Supply for Industrial Applications
Experience the reliability and safety of the Medical Power Supply Module. Designed for portable and patient-contact medical devices, it features high efficiency, ultra-low leakage current, and comprehensive protections. Easy to install and conforming to IEC/EN60601-1 standards, ensuring optimal performance in demanding healthcare applications. Whether for medical monitors, examination instruments, or mobile clinical systems, purchase this high-quality module online for fast delivery and dependable operation in your medical equipment setup. Trust in proven durability and safety compliance for your critical applications.
Get Meanwell 15W medical power supply today—built for precision, safety, and long-lasting durability in critical medical environments.
Frequently Asked Questions
Where can I buy MEAN WELL MPM1524?
You can click on the BUY or RFQ button to purchase MPM1524 from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part MPM1524?
You can download the MPM1524 datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of MPM1524?
MEAN WELL
