MEAN WELL MPM4524 Medical Power Supply
The MPM-45 series is a compact, medical-grade high-reliability power supply that delivers 45W output, suitable for BF-rated medical devices. Its small size (87x52x29.5mm) and high efficiency—up to 92.5%—make it ideal for portable medical applications like clinical workstations and monitors. The design supports a wide input range of 80~264VAC, offers outstanding EMI performance, and features dual insulation (2x MOPP). It operates at high altitudes up to 4000 meters, ensuring safety with low leakage current and comprehensive protections, including overload and overvoltage.
MEAN WELL MPM4524 Medical Power Supply Specifications:
- Power output: 45W, Peak power 50W for 10 seconds
- Input voltage: 80~264VAC, 113~370VDC
- Dimensions: 87x52x29.5mm (PCB mount), 109x52x33.5mm (screw terminal)
- Efficiency: up to 92.5%
- Leakage current: <100μA at 264VAC
- Operating temperature: -30°C to +80°C
- Isolation: 4KVAC, 2x MOPP (Medical Patient Contact) isolation
- Protections: Overload, overvoltage, overtemperature, short circuit
- Vibration resistance: 2-5G, model dependent
- Compliance: IEC/EN60601-1, ANSI/AAMI ES60601-1, UL, CSA
- Five-year warranty and high EMI performance (Class B)

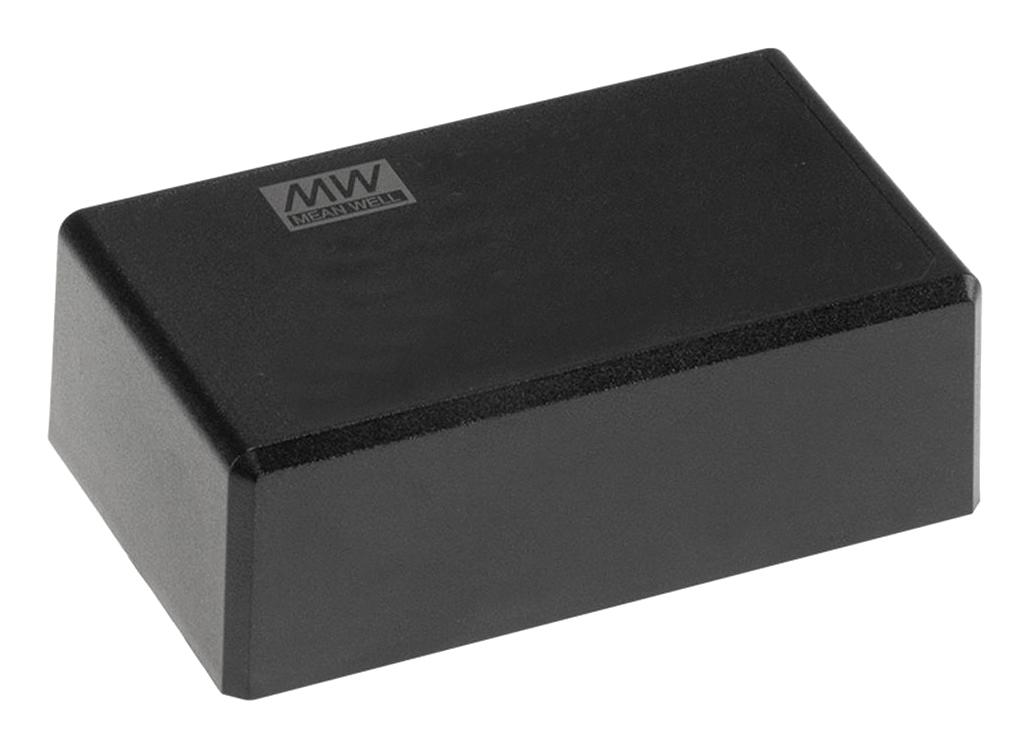

Buy the MedPower Series MPM-45 Green Medical Power Module: MPM-45
Purchase the high-reliability MedPower Series MPM-45 medical power module online today. This compact, efficient supply delivers 45W with a maximum efficiency of 92.5%, suitable for portable medical devices. It features ultra-low leakage current, wide input voltage range of 80~264VAC, and comprehensive protections including overload and overvoltage. Its small size—just 87 by 52 by 29.5mm—makes integration easy in health tech equipment. Ensure device safety, compliance to IEC/EN60601-1, and long-term performance when you buy this top-rated medical power supply online.
Order your MedPower Series MPM-45 medical grade power supply today and ensure reliable, safe power for your portable medical devices.
Frequently Asked Questions
Where can I buy MEAN WELL MPM4524?
You can click on the BUY or RFQ button to purchase MPM4524 from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part MPM4524?
You can download the MPM4524 datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of MPM4524?
MEAN WELL
