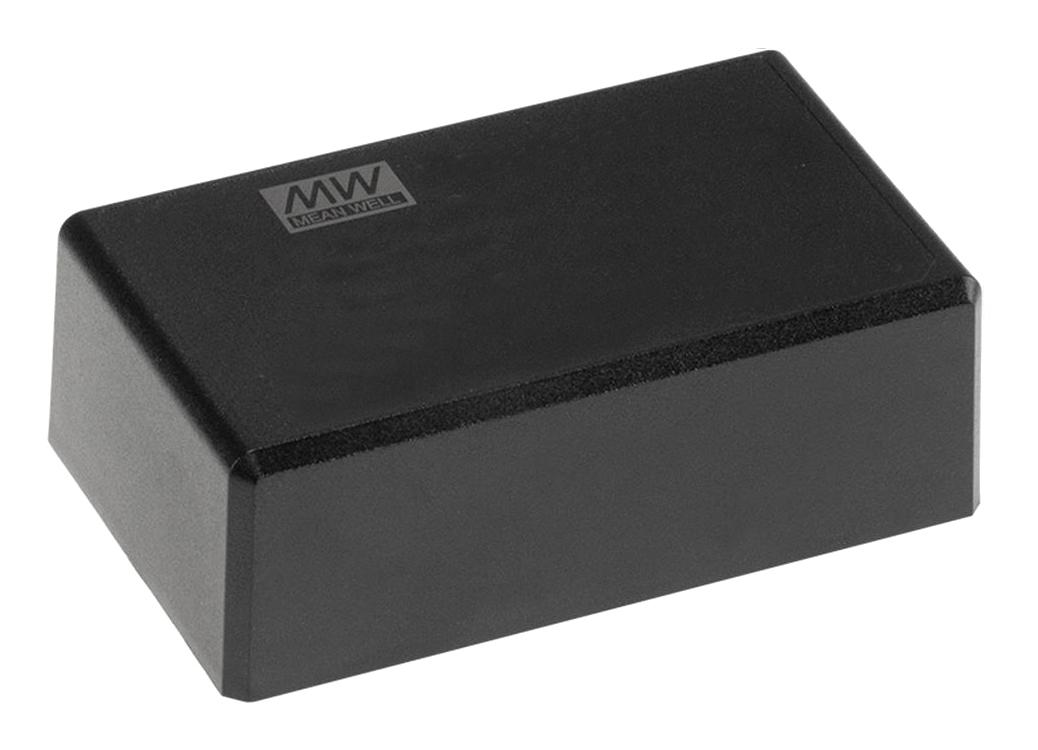

MEAN WELL MPM9048 Medical Power Supply Module
The MPM-90 series is a compact 90W medical power supply module designed for reliable operation within medical environments. Measuring 87x52x29.5mm, it supports AC input from 80V to 264V, offering high efficiency up to 93%, with no load power consumption below 0.1W. It provides 2x MOPP isolation, 4KVAC withstand voltage, and ultra-low leakage current, making it suitable for BF applications. Certified under IEC/EN60601-1 and ANSI/AAMI standards, it features protections against overload, overvoltage, and temperature, ensuring safety and durability in medical devices.
MEAN WELL MPM9048 Medical Power Supply Module Specifications:
- Power Output: 90W with peak 100W (10 sec.)
- Input Voltage: 80~264VAC, 113~370VDC
- Efficiency: up to 93%
- Dimensions: 87x52x29.5mm
- Isolation Voltage: 4KVAC
- Leakage Current: <100A/264VAC
- Protection: Overload, Overvoltage, Overtemperature
- Operating Temperature: -30°C to +80°C
- Vibration Resistance: 2~5G
- EMC Compliance: Class B emission
- Standards: IEC/EN60601-1, ANSI/AAMI ES60601-1
- Mounting: PCB or screw terminal
- Altitude: Up to 4000 meters
- Warranty: 3 years
Buy the Mean Well Series M Series Power Module: MPM-90-48
Purchase the reliable and compact medical-grade power supply module online today. This 90W model features high efficiency up to 93%, certified safety standards, and ultra-low leakage current. Ideal for BF applications, it supports a wide AC input range, has multiple protections, and operates at temperatures from -30°C to +80°C. With a footprint of only 87x52x29.5mm, it is suitable for various medical devices requiring consistent and safe power supply, backed by a 3-year warranty for peace of mind.
Order your Mean Well Series MPM-90-48 power module today and ensure your medical devices operate with reliability and safety in mind.
