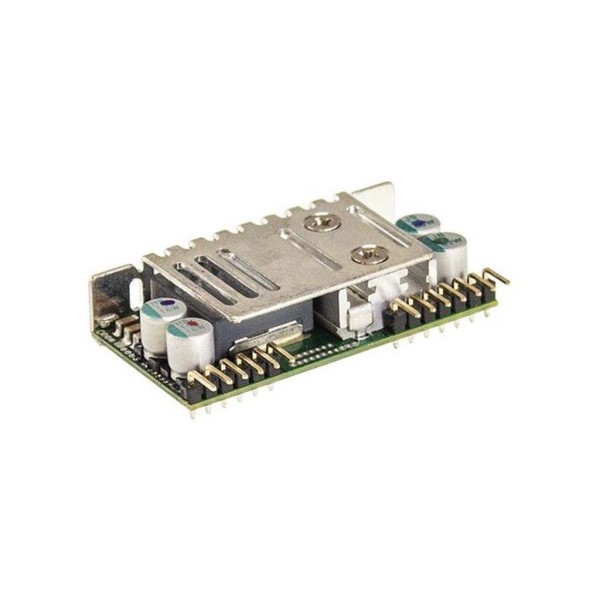

MEAN WELL NID1005 100W DC-DC Converter
The MEAN WELL NID100-5 series offers a compact and efficient solution for converting DC voltage. This 100W non-isolated regulated converter boasts a wide input voltage range, high efficiency (up to 97%), and essential protection features like short-circuit, over-load, and over-voltage protection. Its compact size and remote on/off control make it suitable for a variety of industrial applications, including automation, LED lighting, and power equipment. The unit complies with BS EN/EN55032 Class A standards and offers an optional trimming output for fine-tuning voltage requirements. A 3-year warranty provides added assurance.
MEAN WELL NID1005 100W DC-DC Converter Specifications:
- order_no: NID100-5
- dc_voltage: 5V
- rated_current: 11A
- rated_power: 55W
- output: 5V
- switching_frequency_typ: 200KHz
- voltage_range: 10.5 ~ 53VDC
- efficiency_typ: 93% (24Vin), 92% (12/24VDC)
- dc_current: 5400mA/12VDC
- input: 10.5 ~ 53VDC
- environment: N/A
- working_temp: -30 ~ +85℃
- working_humidity: 20% ~ 85% RH non-condensing
- storage_temp: -30 ~ +105℃
- temp_coefficient: ±0.03% /℃(0 ~ 50℃)
- vibration: 10 ~ 500Hz, 2G 10min./1 cycle
- remote_control: Power on: 1.2VDC < R.C ~ com < 12VDC or open circuit; power off: R.C ~ com < 0.4VDC or short circuit
- dimension: 50.8*27.5*12mm
- weight: 35g
- protection: Fuse recommended (8A)
- voltage_tolerance: ±2.0%
- ripple_noise_max: 100mVp-p
- line_regulation: ±0.5%
- load_regulation: ±0.5%
- overload_typ: 120 ~ 300% rated output power
- short_circuit: Hiccup mode, recovers automatically
- external_capacitance_load_max: 100uF/16V low ESR
- normal_voltage: 24VDC (or 48VDC)
- safety_standards: BS EN/EN62368-1(LVD)
- emc_emission: BS EN/EN55032 Class A
- emc_immunity: BS EN/EN61000-4-3, BS EN/EN61000-4-4, BS EN/EN61000-4-5, BS EN/EN61000-4-6
- mtbf: 17290.5K hrs min.
