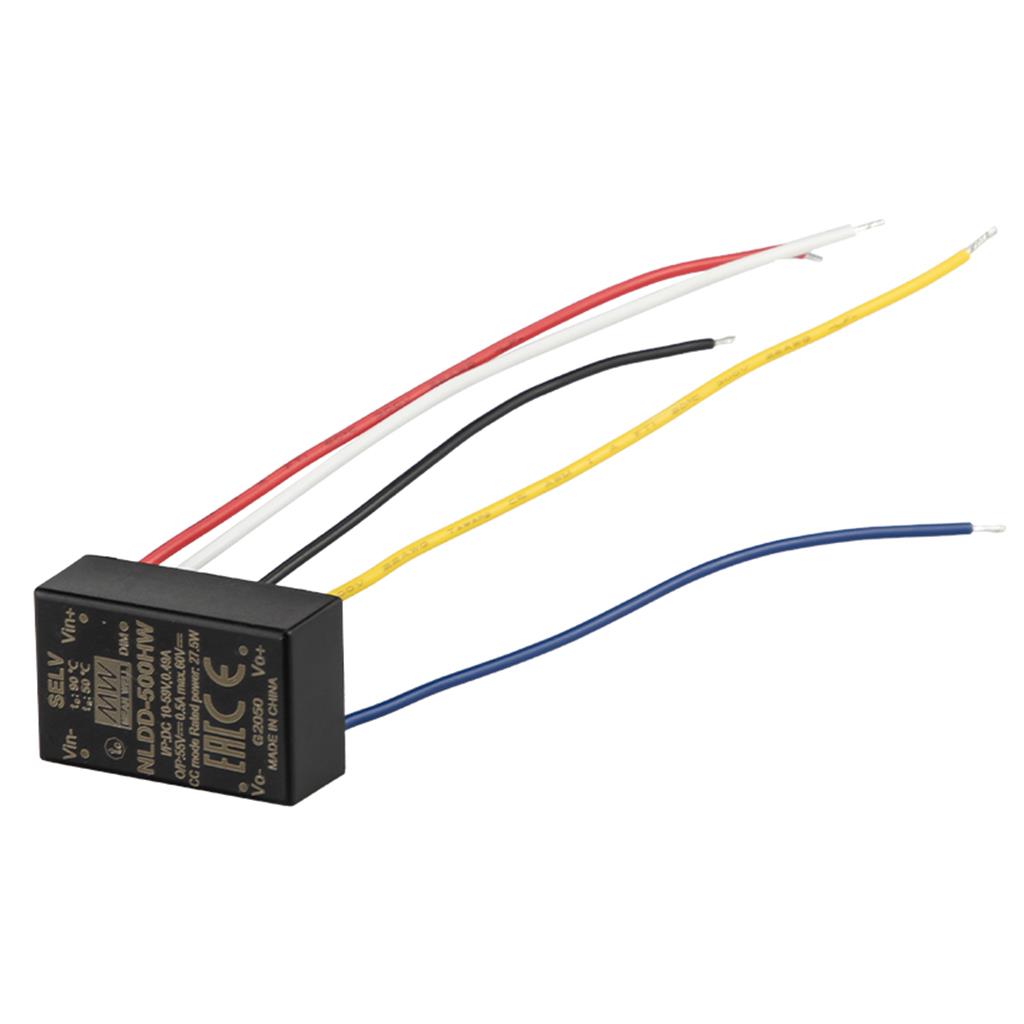

MEAN WELL NLDD1050HW Constant Current Step-Down LED Driver
The MEAN WELL NLDD-H series is a 60W DC-DC LED driver featuring constant current output. Operating from 10~56VDC, it offers models with current ratings ranging between 350mA and 1400mA. With high efficiency up to 96%, the NLDD-H series is suitable for Class III or DC bus lighting applications. It includes features like built-in PWM and remote ON/OFF control, short circuit and over temperature protections, and is compliant with various safety regulations.
MEAN WELL NLDD1050HW Constant Current Step-Down LED Driver Specifications:
- Output Current: 350mA to 1400mA
- Input Voltage: 10 ~ 56VDC (59VDC Max.)
- Output Voltage: 6 ~ 52VDC / 6 ~ 46VDC
- Efficiency: Up to 96%
- Switching Frequency: 200KHz
- Ripple & Noise: 150mVp-p to 350mVp-p
- Current Accuracy: ±5% at 48VDC input
- Protection: Short circuit / Over temperature
- Cooling: Free air convection
- PWM Frequency: 100 ~ 1KHz
- Quiescent Input Current: 2mA
- Working Temperature: -40 ~ +50℃
- MTBF: 29984.3K hrs min.
- Dimension: 32.1*20.5*12.5mm
Buy the NLDD-1050HW MEAN WELL Constant Current Step-Down LED Driver | myMectronic
Purchase the MEAN WELL NLDD-1050HW Constant Current Step-Down LED Driver securely and reliably online.
Buy Now
Frequently Asked Questions
Where can I buy MEAN WELL NLDD1050HW?
You can click on the BUY or RFQ button to purchase NLDD1050HW from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part NLDD1050HW?
You can download the NLDD1050HW datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of NLDD1050HW?
MEAN WELL
