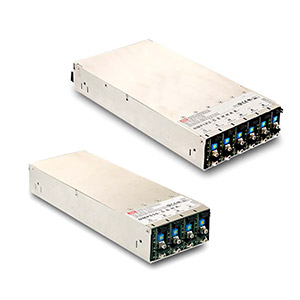

MEAN WELL NMP1K2 Modular Power Supply
The MEAN WELL NMP family is a 1U low profile modular and configurable power supply. This family comprises two power wattages, 650W and 1200W, and the output modules deliver up to 240W with adjustable options for the major working voltages used in the industries. NMP family complies with safety approvals, the medical (2x MOPP between primary to secondary) and ITE standards. Offering the best flexibility for various types of applications, such as medical equipment, diagnostic facilities, and factory automation.
MEAN WELL NMP1K2 Modular Power Supply Specifications:
- voltage_range: 90 ~ 264VAC, 120 ~370VDC
- frequency_range: 47 ~ 63Hz
- power_factor: PF>0.95/230VAC, PF>0.98/115VAC at full load
- efficiency: 85% (typical), 91% with H/K module
- ac_current_input: 6.7A/230VAC, 13.5A/115VAC
- inrush_current: 40A/230VAC, 25A/115VAC
- leakage_current: <400uA / 264VAC (Earth), <100uA/264VAC (Touch)
- total_output_power: 1200W max.
- over_temperature_protection: Shut down output voltage, recovers automatically
- remote_control: Short (Power ON), Open (Power OFF)
- alarm_signal: TTL signal output for over temperature
- auxiliary_power: 5V @ 2A (±10% tolerance, 50mVp-p ripple max)
- working_temperature: -30 ~ +70°C (Derate at 50°C)
- working_humidity: 20 ~ 90% RH non-condensing
- storage_temperature_humidity: -40 ~ +85°C, 10 ~ 95% RH non-condensing
- temp_coefficient: ±0.03%/°C (0 ~ 50°C)
- vibration: 10~500Hz, 2G 10min./1 cycle
- safety_standards: ANSI/AAMI ES60601-1, UL62368-1, EN60601-1, IEC 62368-1, IEC60950-1
- isolation_level: Primary-Secondary: 2x MOPP, Primary-Earth: 1x MOPP
- withstand_voltage: 4KVAC (I/P-O/P), 2KVAC (I/P-FG), 0.5KVAC (O/P-FG)
- isolation_resistance: 100M Ohms / 500VDC / 25°C / 70% RH
- emc_immunity: EN61000-4-2 (ESD), EN61000-4-3 (RF field), EN61000-4-4 (EFT/Burst), EN61000-4-5 (Surge)
- emc_emission: EN55032 (CISPR32), EN55011 (CISPR11)
Buy the NMP1K2 MEAN WELL Modular Power Supply | myMectronic
Purchase the MEAN WELL NMP1K2 modular power supply securely and reliably online.
Buy Now
Frequently Asked Questions
Where can I buy MEAN WELL NMP1K2?
You can click on the BUY or RFQ button to purchase NMP1K2 from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part NMP1K2?
You can download the NMP1K2 datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of NMP1K2?
MEAN WELL
