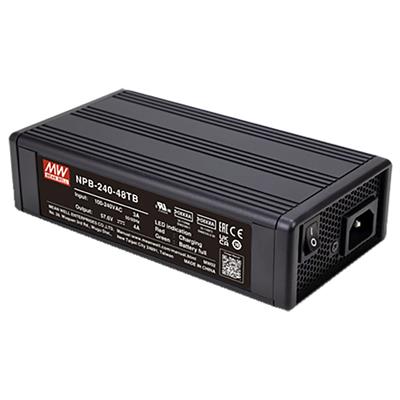

MEAN WELL NPB24024TB Compact Power Charger
The MEAN WELL NPB-240 series is a 240W charger designed for compatibility with both flooded, gel, and AGM lead-acid, as well as lithium iron and lithium manganese batteries. This Class I power unit (with FG) is equipped with a standard IEC320-C14 AC inlet and two or three-stage charging control. The series supplies different models with output voltages ranging between 10.5VDC and 60.8VDC, catering to diverse battery device demands. It's ideal for applications like radio systems, electric scooters, camping cars, and heavy-duty vehicles.
MEAN WELL NPB24024TB Compact Power Charger Specifications:
- Output connector: TB type
- Rated wattage: 205.2W
- Input voltage range: 90 ~ 264VAC
- Input frequency range: 47 ~ 63Hz
- Power factor: >0.98/115VAC, >0.95/230VAC
- Efficiency: 92%
- Operating temperature: -30 ~ +70℃
- Storage temperature: -40 ~ +85℃
- Temperature coefficient: ±0.05%/℃
- Vibration: 10 ~ 500Hz
- MTBF: 180,000 hours
- Dimensions: 180*96*49mm
- AC current: 3A/115VAC, 1.5A/230VAC
- Over voltage protection: Protection type :Constant current limiting
- Adjustable voltage range: 10.5 ~ 15.2V, 21 ~ 30.4V, 42 ~ 60.8V
- Adjustable current range: 50% ~ 100% rated current
- Safety standards: UL/EN62368-1 and EN60335-1/2-29 dual certification
Buy the NPB-240-24TB MEAN WELL Compact Power Charger | myMectronic
Purchase the MEAN WELL NPB-240-24TB securely and reliably for your power charging needs.
Buy Now
Frequently Asked Questions
Where can I buy MEAN WELL NPB24024TB?
You can click on the BUY or RFQ button to purchase NPB24024TB from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part NPB24024TB?
You can download the NPB24024TB datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of NPB24024TB?
MEAN WELL
