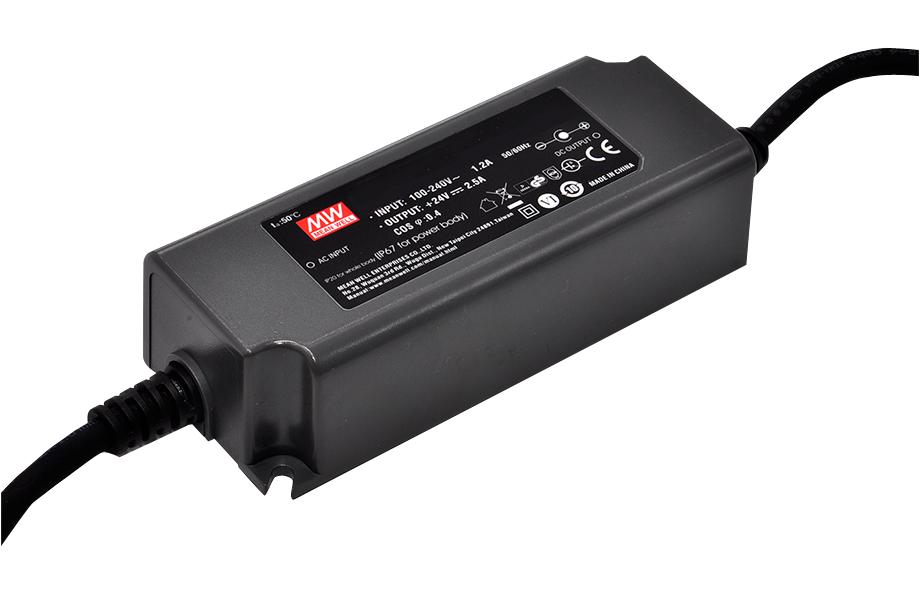

MEAN WELL OWA60E24 Moistureproof Power Supply
The moistureproof 60W power supply series OWA-60E provides a reliable, energy-efficient, and IP67-rated solution suitable for damp, dusty, or humid environments. Fully isolated with a plastic case, it features silicone potting for heat dissipation, making it ideal for outdoor applications such as robotic lawn mowers and household appliances. It complies with EU ErP, CoC V5, and EN standards, offering low no-load power consumption below 0.15W. The unit operates within a wide voltage range of 90-264VAC, with efficiencies up to 91%, and includes protections against short circuits, overloads, overvoltage, and temperature extremes.
MEAN WELL OWA60E24 Moistureproof Power Supply Specifications:
- Output Power: 60W
- Input Voltage Range: 90-264VAC
- Output Voltages: 12V, 15V, 20V, 24V, 30V, 36V, 42V, 48V, 54V
- Rated Current: 5A, 4A, 3A, 2A, 1.674A, 1.5A, 1.254A, 4.124A, 1A respectively
- Ripple & Noise: 150-350mVp-p depending on model
- Voltage Tolerance: 1-4%, precise per model
- Efficiency: up to 91%
- Operating Temperature Range: -35°C to +70°C
- Protection: Short circuit, Overload, Overvoltage, Over temperature
- Certifications: EN61558-2-16, EN60335-1 (selected models), IP67 rated enclosure
- Dimensions: 130mm x 53mm x 35mm
- Fanless, convection cooled, class II (no FG), fully isolated plastic case
- Humidity Range: 20%-95% RH, non-condensing
- MTBF: 292,800 hours according to MIL-HDBK-217F
Buy the Buy Mean Well Moistureproof Power Supply Part Number OWA-60E24 Online
Purchase the reliable and highly efficient moistureproof power supply series OWA-60E24 online today. Designed with IP67 protection for dust, humidity, and outdoor environments, this 60W power source features a wide input range of 90-264VAC, up to 91% efficiency, and low no-load power consumption under 0.15W. Suitable for household appliances, robotic lawn mowers, and electronic devices in dusty or humid settings, it incorporates multiple protections, a durable plastic case, and complies with strict safety standards. Perfect for demanding outdoor applications, order now and enhance your system's reliability.
Order your Mean Well Series OWA-60E24 moistureproof power supply today and ensure reliable, dust-resistant energy for outdoor household and industrial projects.
Frequently Asked Questions
Where can I buy MEAN WELL OWA60E24?
You can click on the BUY or RFQ button to purchase OWA60E24 from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part OWA60E24?
You can download the OWA60E24 datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of OWA60E24?
MEAN WELL
